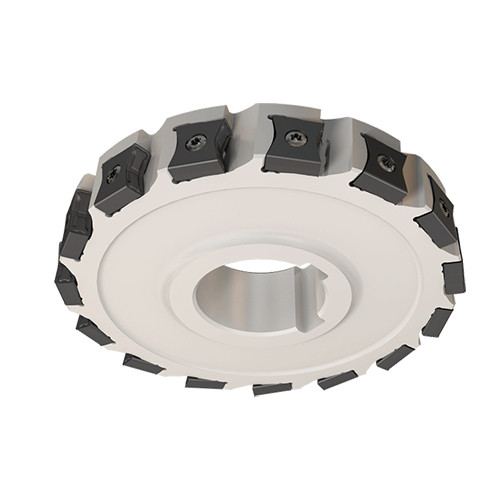

SSB D125-22-40-LN15-L
Single-side cutting, disk type slotting cutters carrying tangentially clamped LNKX 1506... inserts.

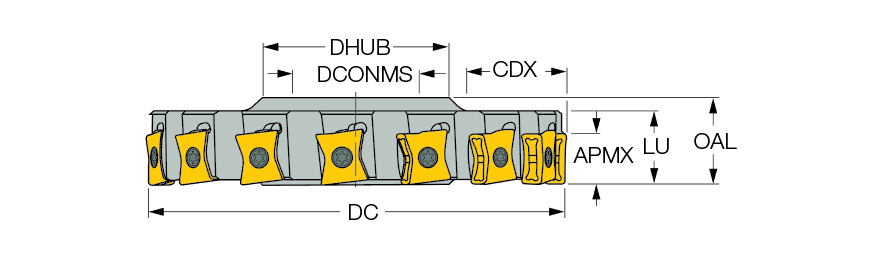

| Cutting Diameter (DC) | 125 mm | Master Insert Identification (MIID) | LNKX 1506PN-N PL |
| Cutting Item Count (CICT) | 15 | Application | | Bottom Shouldering | Shouldering | |
| Peripheral Effective Cutting Edge Count (ZEFP) | 15 | Tool Type | Half-sided slotting cutters |
| Depth of Cut Maximum (APMX) | 14 mm | Measurement Type | Metric |
| Cutting Depth Maximum (CDX) | 35 mm | Body Material | Steel |
| Hub Diameter (DHUB) | 56 mm | Connection Code Machine Side (CCMS) | Disk type |
| Usable Length (LU) | 22 mm | Unit | M |
| Overall Length (OAL) | 26 mm |
Product Features
| Family Description | Single-side cutting, disk type slotting cutters carrying tangentially clamped LNKX 1506... inserts. | FamilyName | SSB-LN15-R/L |
| Remarks | Note: Left-hand cutters are designated by a yellow groove. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.7720
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
SSB-LN15-R/L
BrandName
Iscar
