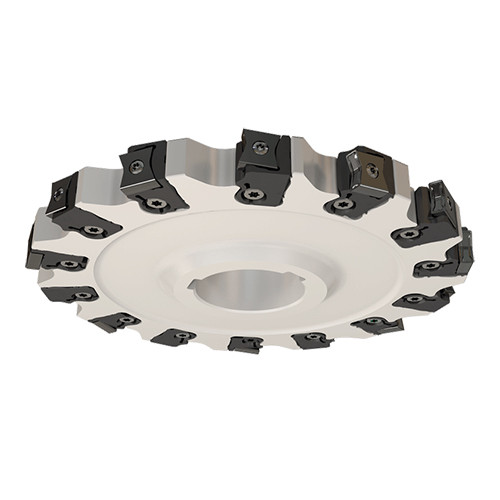

SDN D250-1925-60-CALN15
Full slot adjustable slotting cutters with cartridges carrying tangentially mounted LN.. 1506.. inserts. Each cutter body can be changed into full slot, bottom or top milling configuration, by mounting the cartridges accordingly.
| Cutting Diameter (DC) | 250 mm | Overall Length (OAL) | 26 mm |
| Cutting Item Count (CICT) | 16 | Master Insert Identification (MIID) | LNKX 1506PN-N PL |
| Peripheral Effective Cutting Edge Count (ZEFP) | 8 | Application | | Bottom Shouldering | Shouldering | Side Slotting | Slotting | |
| Cutting Depth Maximum (CDX) | 79 mm | Tool Type | Double-sided slotting cutters |
| Hub Diameter (DHUB) | 85 mm | Measurement Type | Metric |
| Cutting Width Maximum (CWX) | 25.6 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 18.9 mm | Connection Code Machine Side (CCMS) | Disk type |
| Flute Count (NOF) | 16 | Unit | M |
Product Features
| Family Description | Full slot adjustable slotting cutters with cartridges carrying tangentially mounted LN.. 1506.. inserts. Each cutter body can be changed into full slot, bottom or top milling configuration, by mounting the cartridges accordingly. | FamilyName | SDN-CALN15 |
| Remarks | Each cutter body can be changed into full slot, bottom or top milling configuration by mounting the cartridges accordingly Half of the inserts are used on right-hand cartridges and half on left-hand cartridges Gang-mill assembly SDN and left-hand SSB cutters feature two keyways. To reduce vibration, it is recommended to assemble gang-mills with alternating keyway position. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
5.7130
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
SDN-CALN15
BrandName
Iscar
