ETS D032-03-LN08-M08

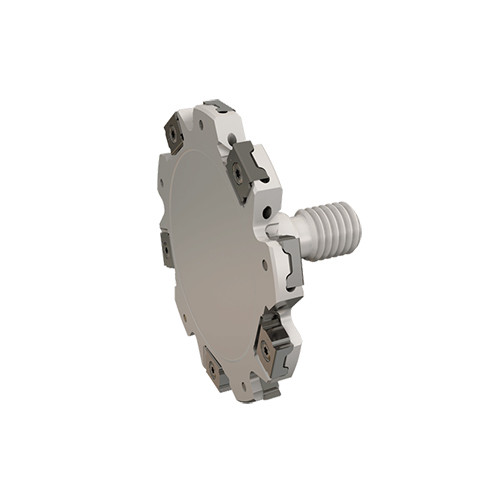

MINI-TANGSLOT, Grooving and slitting cutters with FLEXFIT threaded adaptation, carrying tangentially clamped inserts with 4 cutting edges.

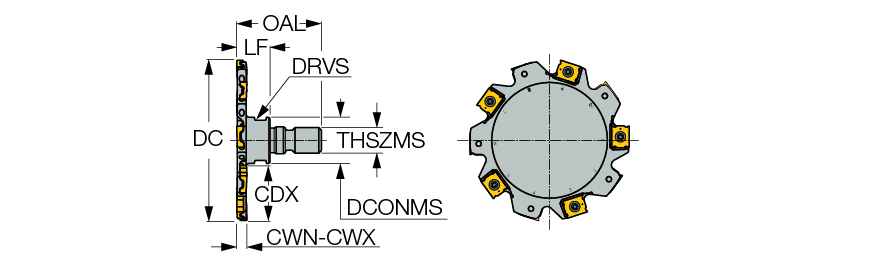

| Cutting Diameter (DC) | 32 mm | Tool Type | Double-sided slotting cutters |
| Flute Count (NOF) | 4 | Body Material | Steel |
| Peripheral Effective Cutting Edge Count (ZEFP) | 2 | Cutting Item Count (CICT) | 4 |
| Connection Diameter Machine Side (DCONMS) | 13 mm | Master Insert Identification (MIID) | LNET 081804-TN-N |
| Overall Length (OAL) | 30.5 mm | Connection Code Machine Side (CCMS) | FLEXFIT |
| Application | | Side Slotting | Slitting | T Slotting | | Unit | M |
| Measurement Type | Metric |
Product Features
| Family Description | MINI-TANGSLOT, Grooving and slitting cutters with FLEXFIT threaded adaptation, carrying tangentially clamped inserts with 4 cutting edges. | FamilyName | ETS-LN08-M |

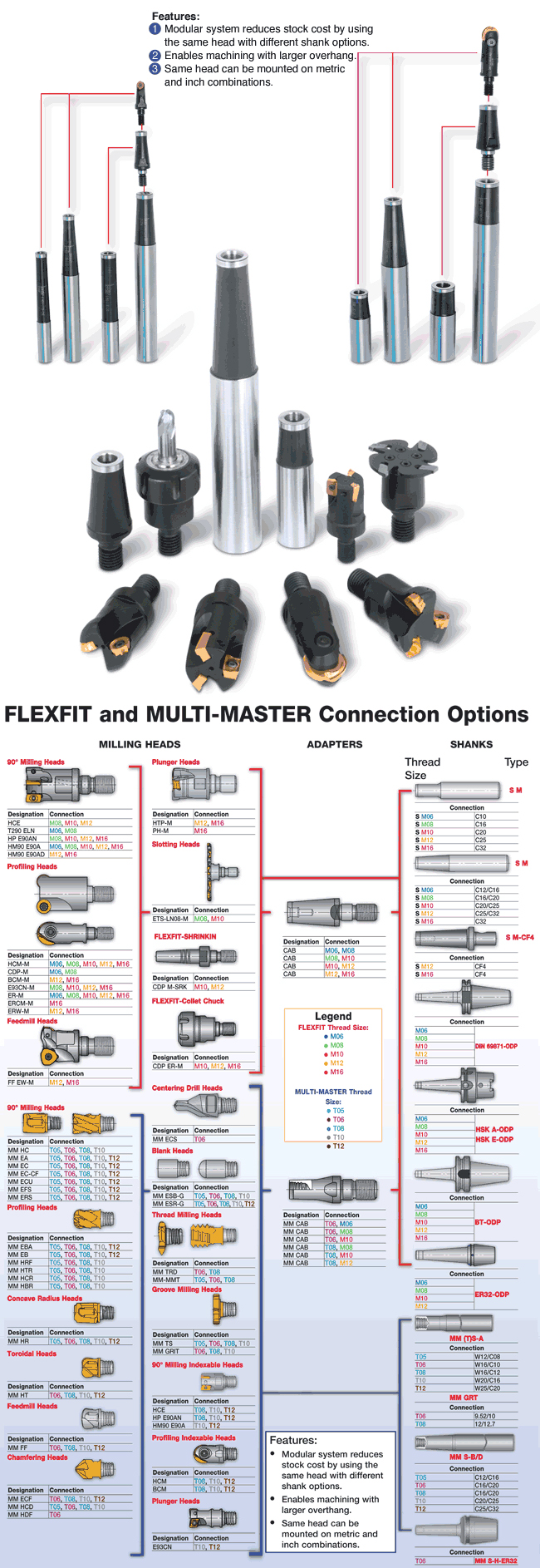

| Remarks | For adaptation, click on More Info When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0910
Name
Disc w/Shank Indexable Slotting Cutters
FamilyName
ETS-LN08-M
BrandName
Iscar
