H400 FR D100-09-32-16

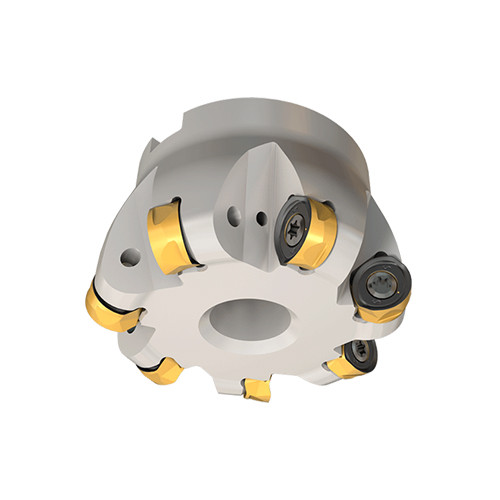

Face mills carrying double-sided inserts with four 8 mm radius cutting edges (HELIDO ROUND H400 LINE).

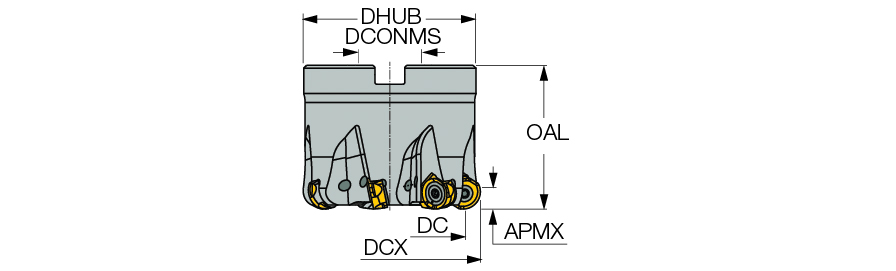

| Cutting Diameter (DC/DCX) | 100 mm | Master Insert Identification (MIID) | H400 RNHU 1606-AX |
| Cutting Diameter (DC) | 84 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 100 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 9 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 12 mm | Application | | Facing | Helical Interpolation | Profiling | Rampdown | |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Overall Length (OAL) | 49.6 mm | Tool Type | Round corner cutters |
| Hub Diameter (DHUB) | 84 mm | Unit | M |

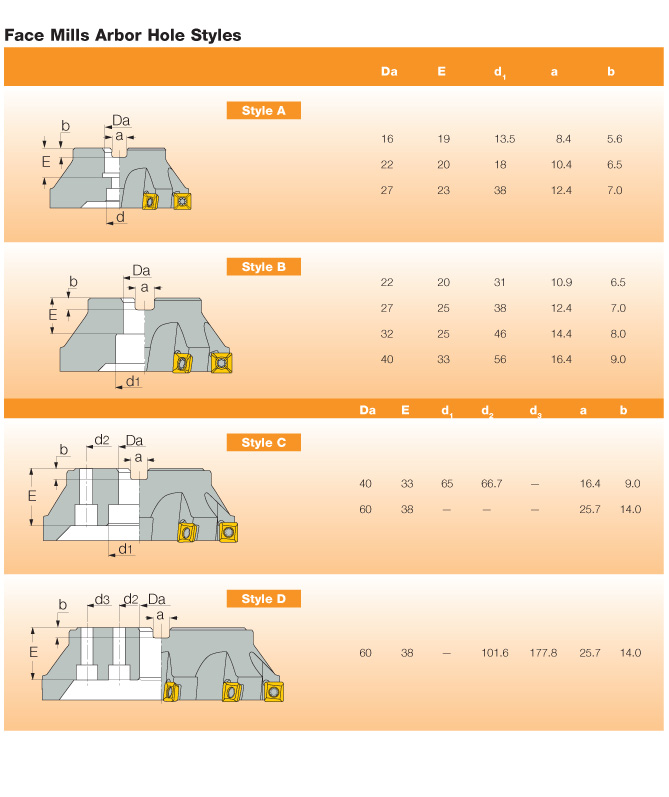

| Arbor Style | A |
Product Features
| Family Description | Face mills carrying double-sided inserts with four 8 mm radius cutting edges (HELIDO ROUND H400 LINE). | FamilyName | H400 FR-16 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
1.9620
Name
Indexable Face Mills
FamilyName
H400 FR-16
BrandName
Iscar
