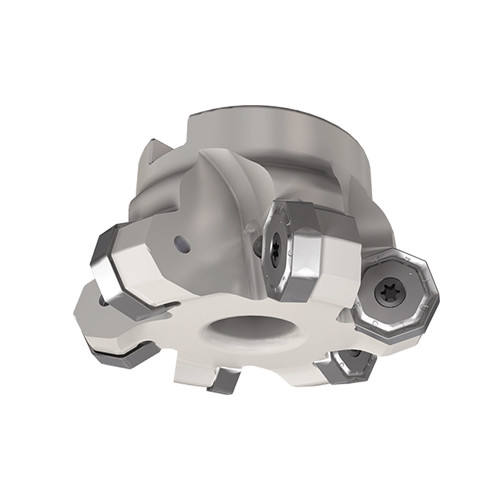

FF NM D080-06-27-R08
16FEEDMILL, face mills, carrying Octagonal ONHU/MU 0806... inserts with 16 cutting edges. Feature very high table speed.
| Cutting Diameter (DC/DCX) | 80 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 80 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 6 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 2 mm | Application | | Facing | Fast Feed Milling | |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Tool Cutting Edge Angle (KAPR) | 15 Degrees |
| Hub Diameter (DHUB) | 0 mm | Tool Type | Fast Feed Face mill |
| Arbor Style | A | Unit | M |
| Master Insert Identification (MIID) | ONHU 080608-TN |
Product Features
| Family Description | 16FEEDMILL, face mills, carrying Octagonal ONHU/MU 0806... inserts with 16 cutting edges. Feature very high table speed. | FamilyName | FF NM |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.9780
Name
Indexable Face Mills
FamilyName
FF NM
BrandName
Iscar
