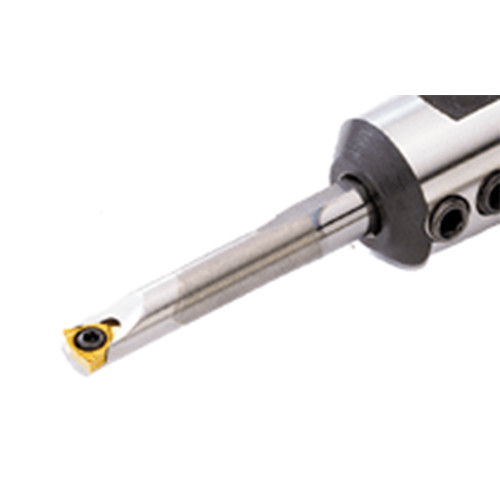

MG 06-SWUBL-06
Solid carbide bars for internal turning Dmin 6.6mm.

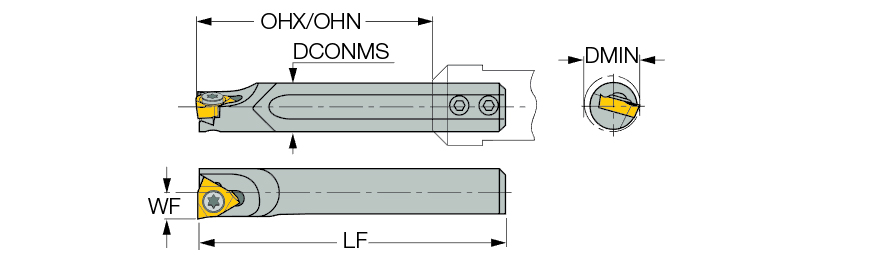

| Connection Diameter Machine Side (DCONMS) | 6 mm | Application | | Int. 80° Trigon 93° Approach | |
| Overall Length (OAL) | 59 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Width (WF) | 3.3 mm | Rake Angle Radial (GAMF) | -15 Degrees |
| Master Insert Identification (MIID) | WBMT 020102L/R | Tool Type | Internal Indexble -Turn Tool |
| Minimum Bore Diameter (DMIN) | 6.6 mm | Body Material | Carbide |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
| Coolant Supply Property (CSP) | External | Unit | M |
Product Features
| Family Description | Solid carbide bars for internal turning Dmin 6.6mm. | FamilyName | MG-SWUBR/L |
| Remarks | Use right-hand WBMT 06...R inserts on left-hand tools and left-hand WBMT 06...L inserts on right-hand tools | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0390
Name
Indexable Internal Turning Tools
FamilyName
MG-SWUBR/L
BrandName
Iscar
