NQCH12-SEL-16-JHP

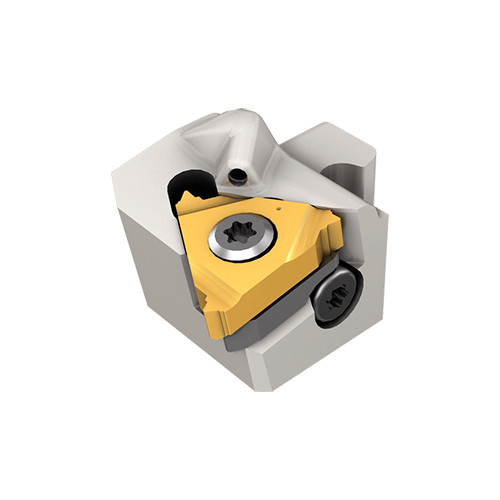

Screw Lock JETCUT Modular Heads which Mount ISO Laydown Threading Inserts for Swiss-Type Machines
| Overall Length (OAL) | 29.4 mm | Rake Angle Axial (GAMP) | 10 Degrees |
| Head Length (LH) | 20.6 mm | Rake Angle Radial (GAMF) | 1.5 Degrees |
| Functional Width (WF) | 12 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | M TNMB 3-2-MS | Body Material | Steel |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | M |
| Application | | External Threading | |
Product Features
| Family Description | Screw Lock JETCUT Modular Heads which Mount ISO Laydown Threading Inserts for Swiss-Type Machines | FamilyName | NQCH-SER/L-JHP |
| Remarks | Use only RH Shank with RH Head and LH Shank with LH Head | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0650
Name
Indexable Internal Turning Tools
FamilyName
NQCH-SER/L-JHP
BrandName
Iscar
