S20R STLCL-16

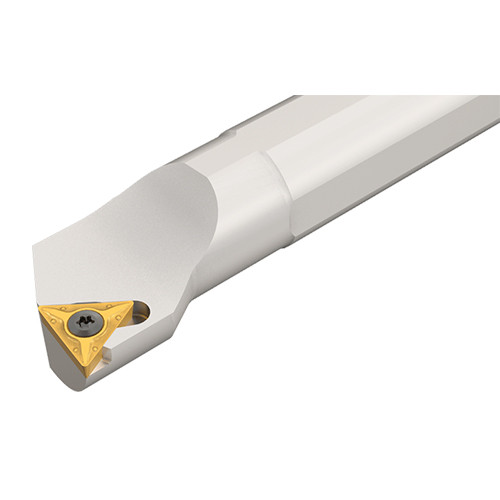

Screw clamp boring bars carrying 7° clearance triangular inserts.

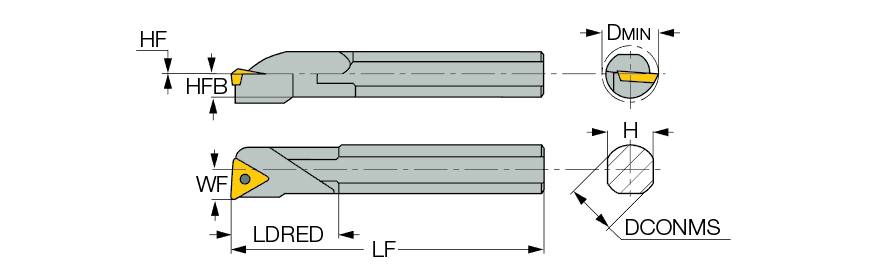

| Connection Diameter Machine Side (DCONMS) | 20 mm | Application | | Int. 60° Triangle 95° Approach | |
| Overall Length (OAL) | 200 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Reduced Body Diameter Length (LDRED) | 50 mm | Rake Angle Radial (GAMF) | -3 Degrees |
| Shank Height (H) | 18 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 13 mm | Body Material | Steel |
| Master Insert Identification (MIID) | TC.. 16T3 | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 25 mm | Unit | M |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | Screw clamp boring bars carrying 7° clearance triangular inserts. | FamilyName | S-STLCR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.4900
Name
Indexable Internal Turning Tools
FamilyName
S-STLCR/L
BrandName
Iscar
