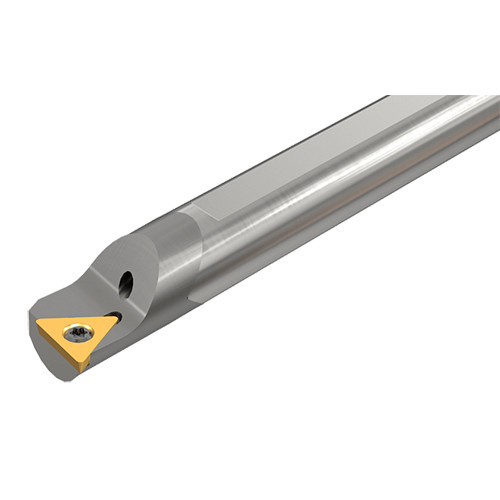

E-STLPR 12-3
Screw lock boring bars for 11° clearance triangular inserts.A carbide shank with coolant holes.

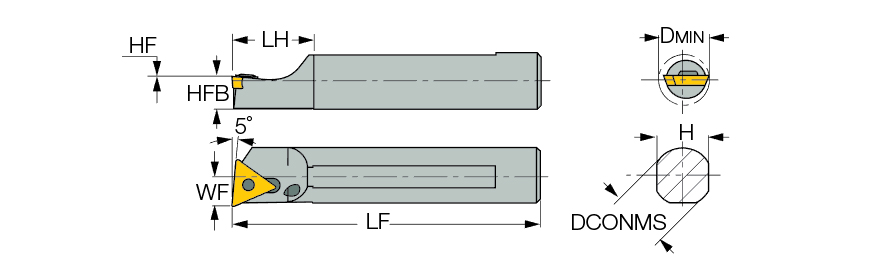

| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | | Int. 60° Triangle 95° Approach | |
| Overall Length (OAL) | 10″ | Rake Angle Axial (GAMP) | 5 Degrees |
| Functional Width (WF) | 0.42″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Master Insert Identification (MIID) | TPMT 321 | Tool Type | Internal Indexble -Turn Tool |
| Minimum Bore Diameter (DMIN) | 0.815″ | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | I |
Product Features
| Family Description | Screw lock boring bars for 11° clearance triangular inserts.A carbide shank with coolant holes. | FamilyName | E-STLPR |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
2.0018
Name
Indexable Internal Turning Tools
FamilyName
E-STLPR
BrandName
Iscar
