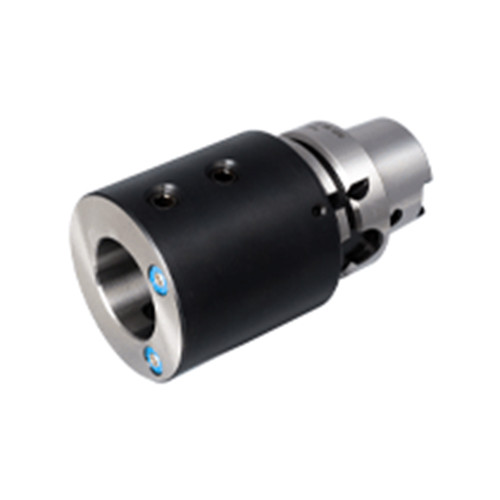

HSK A63WH-ABB 1-1/2

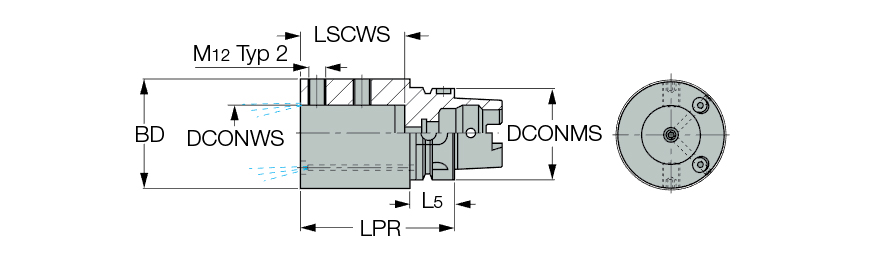

| Connection Diameter Machine Side (DCONMS) | 2.48″ | Tool Type | HSK -T (ISO 12164-3) |
| Overall Length (OAL) | 5.394″ | Body Material | Steel |
| Body Diameter (BD) | 2.953″ | Measurement Type | Inch |
| Connection Diameter Workpiece Side (DCONWS) | 1-1/2″ | Unit | I |
Product Features
| Family Description | Adapters with HSK exchangeable shanks for boring bars with reduction sleeves. | FamilyName | HSK A63WH ABB |
| Remarks | Complies with ICTM standard (ISO 12164-3) A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) For shank dimensions, click on More Info | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
6.0583
Name
Indexable Internal Turning Tools
FamilyName
HSK A63WH ABB
BrandName
Iscar
