FF EWXD1.25-3-2.5W1.25-07

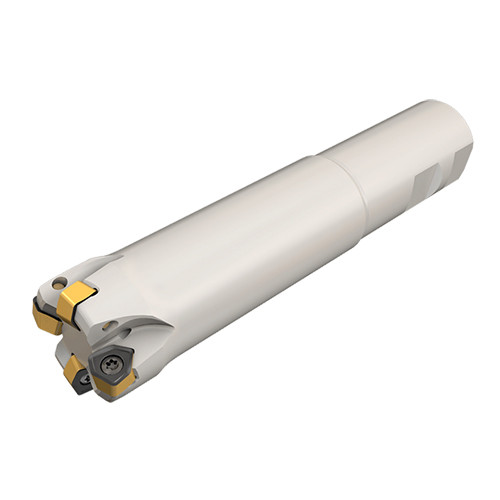

HELIDO UPFEED endmills for fast feed, carrying double-sided Inserts with 6 cutting edges.

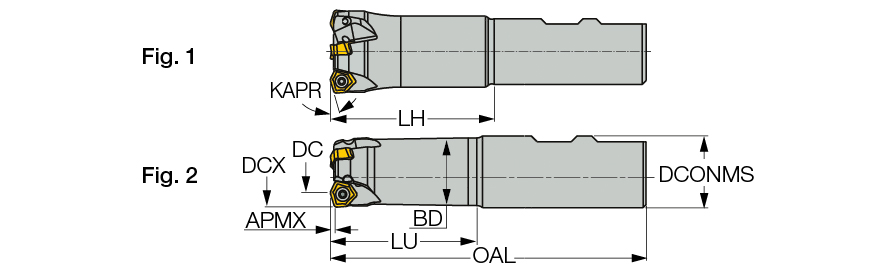

| Cutting Diameter (DC/DCX) | 0.74″ | Tool Type | Fast Feed Endmill |
| Cutting Diameter (DC) | 0.74″ | Usable Length (LU) | 2-1/2″ |
| Cutting Item Count (CICT) | 3 | Flute Count (NOF) | 3 |
| Depth of Cut Maximum (APMX) | 0.059″ | Body Diameter (BD) | 1.2″ |
| Overall Length (OAL) | 4.95″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Ramping Angle Maximum (RMPX) | 6.3 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Body Material | Steel |
| Master Insert Identification (MIID) | H600 WXCU 070515T | Connection Code Machine Side (CCMS) | Weldon |
| Head Length (LH) | 2.62″ | Cutting Diameter Maximum (DCX) | 1-1/4″ |
| Functional Length (LF) | 3.809″ | Unit | I |
Product Features
| Family Description | HELIDO UPFEED endmills for fast feed, carrying double-sided Inserts with 6 cutting edges. | FamilyName | FF EWX |

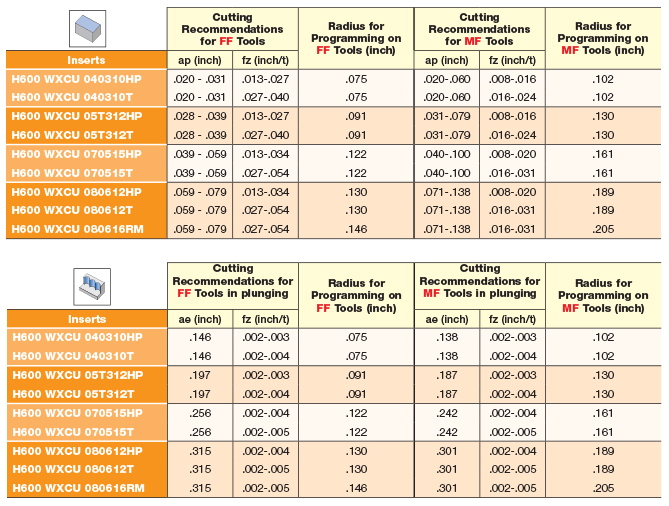

| Remarks | For machining recommendations, radius for programming and adaptation click on More Info To generate a straight surface without cusps, the width of cut must not exceed DC | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.4991
Name
Indexable End Mills
FamilyName
FF EWX
BrandName
Iscar
