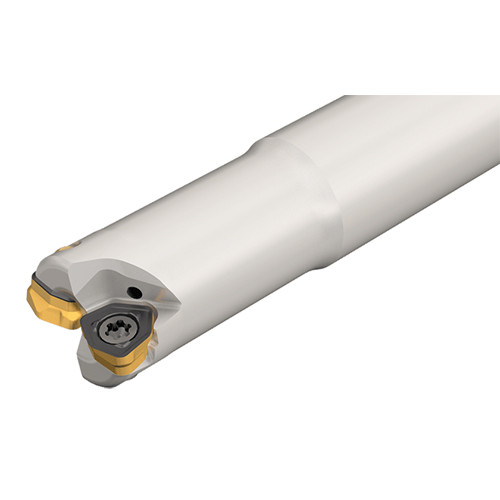

FFT3 EFM D20-5-160-C20-03
Endmills carrying single-sided small trigon inserts for fast feed milling

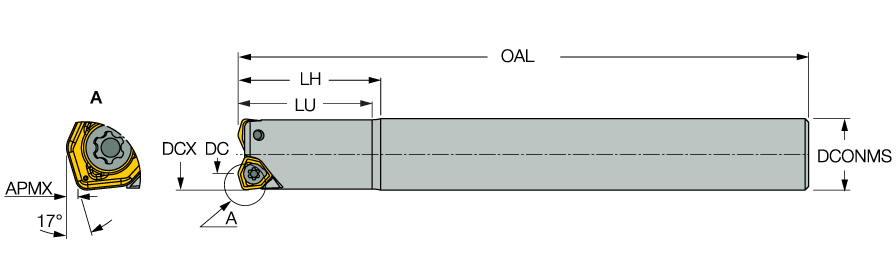

| Cutting Diameter (DC/DCX) | 20 mm | Functional Length (LF) | 160 mm |
| Cutting Diameter (DC) | 15.6 mm | Usable Length (LU) | 40.8 mm |
| Cutting Item Count (CICT) | 5 | Torque (TQ) | 0.5 Nxm |
| Depth of Cut Maximum (APMX) | 0.6 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 160 mm | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Shank Type | Round | Measurement Type | Metric |
| Ramping Angle Maximum (RMPX) | 2 Degrees | Body Material | Steel |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Connection Code Machine Side (CCMS) | Cylindrical |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Cutting Diameter Maximum (DCX) | 20 mm |
| Master Insert Identification (MIID) | FFT3 WXMT 030206T | Unit | M |
| Head Length (LH) | 43 mm |
Product Features
| Family Description | Endmills carrying single-sided small trigon inserts for fast feed milling | FamilyName | FFT3 EFM-03 |
| Remarks | Radius for programming 1.0 mm To generate a straight surface without cusps, the width of cut must not exceed DC | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.3840
Name
Indexable End Mills
FamilyName
FFT3 EFM-03
BrandName
Iscar
