TRFF TXMT 0702 IC808

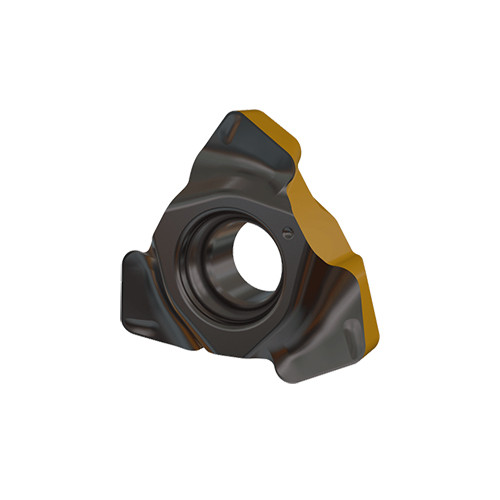

Single-sided insert with three cutting edges for high feed machining.
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.8 mm/tooth |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Profiling | Rampdown | | Cutting Direction (HAND) | Right Hand |

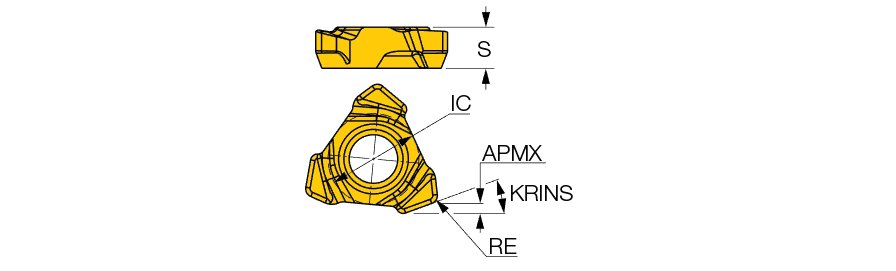

| Corner Radius (RE) | 0.5 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.6 mm | Minimum Feed per Tooth (fz(min)) | 0.5 mm/tooth |
| Inscribed Circle Diameter (IC) | 5.3 mm | Measurement Type | Metric |
| Insert Thickness (S) | 2.4 mm | Body Material | Carbide |
| Coating | TiAlN+AlTiN+TiN | Unit | M |
| Grade | IC808 |
Product Features
| Family Description | Single-sided insert with three cutting edges for high feed machining. | FamilyName | TRFF TXMT |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0020
Name
Milling Indexable Inserts
FamilyName
TRFF TXMT
BrandName
Iscar
