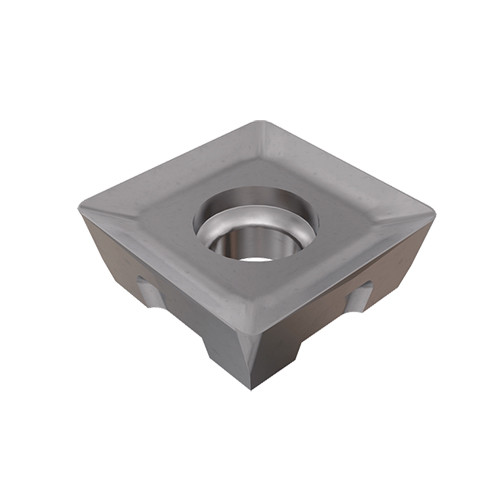

QDCT 120508-PDN IC330
Precision Ground Neutral insert for General Use
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.12 mm/tooth |
| Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | | Cutting Edge Material | Carbide |

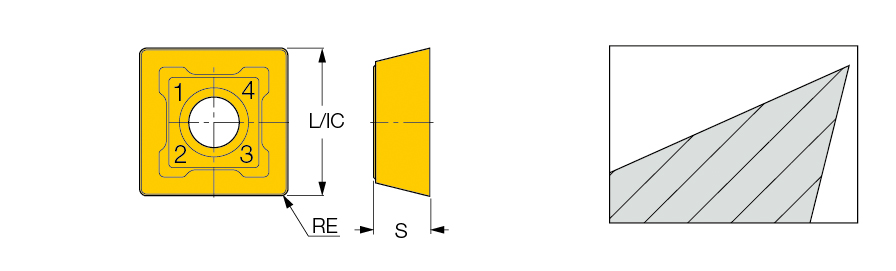

| Insert Length (INSL) | 12.7 mm | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 0.8 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Insert Thickness (S) | 4.92 mm | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Metric |
| Coating | TiCN+TiN | Body Material | Carbide |
| Grade | IC330 | Unit | M |
Product Features
| Family Description | Precision Ground Neutral insert for General Use | FamilyName | QDCT-PDN |
| Remarks | Inserts with corner radii larger than 0.8 mm should be used only on the face of the SDK cutter. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0078
Name
Milling Indexable Inserts
FamilyName
QDCT-PDN
BrandName
Iscar
