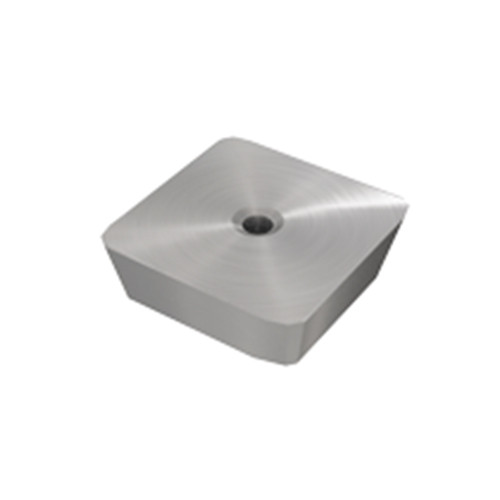

SEKN 1203AFFN IC28
Flat rake face milling inserts for general use.
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Cutting Direction (HAND) | Right / Left |
| Application | | Facing | Plunging & Recessing | Slanted Shoulder & Chamfer | | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 12.7 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 6.5 mm | Minimum Feed per Tooth (fz(min)) | 0.12 mm/tooth |
| Insert Thickness (S) | 3.18 mm | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC28 | Unit | M |
| Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
Product Features
| Family Description | Flat rake face milling inserts for general use. | FamilyName | SEKN-AF.. |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0071
Name
Milling Indexable Inserts
FamilyName
SEKN-AF..
BrandName
Iscar
