| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Slanted Shoulder & Chamfer | | Cutting Edge Material | Carbide |

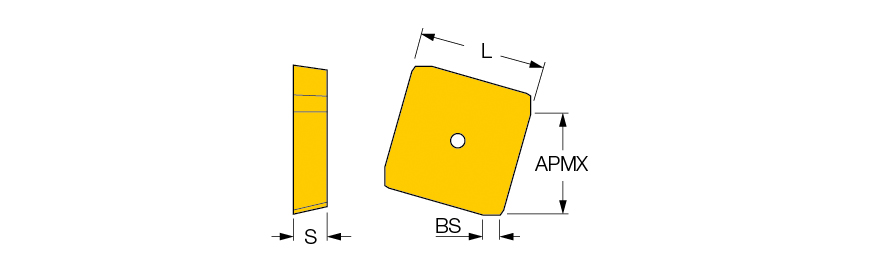

| Insert Length (INSL) | 12.7 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 9.5 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Insert Thickness (S) | 3.18 mm | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC20 | Unit | M |
| Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
Product Features
| Family Description | Flat rake milling inserts for general use. The -42 design provide an improved tool life. | FamilyName | SPKN ED.. |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0079
Name
Milling Indexable Inserts
FamilyName
SPKN ED..
BrandName
Iscar
