| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.12 mm/tooth |
| Application | | Facing | Shouldering | Slotting | | Cutting Edge Material | Carbide |

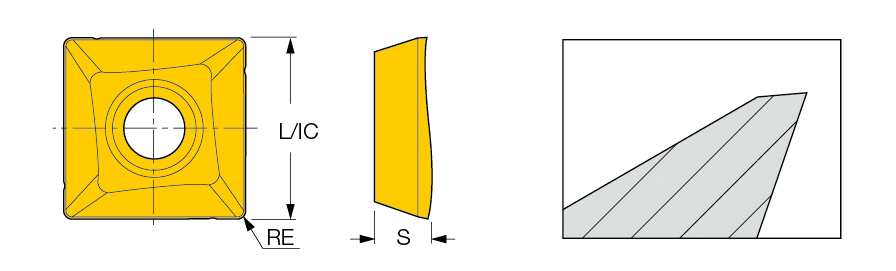

| Insert Length (INSL) | 12.7 mm | Tool Type | Mill AL, HTA Geometric Inserts |
| Corner Radius (RE) | 1 mm | Minimum Feed per Tooth (fz(min)) | 0.07 mm/tooth |
| Depth of Cut Maximum (APMX) | 10 mm | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 5.1 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
| Coating | TiCN | Unit | M |
| Grade | IC328 |
Product Features

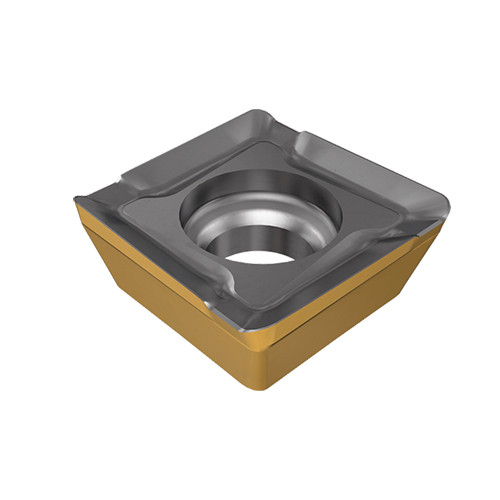

| Family Description | HELIQUAD, Super positive square insert for machining aluminum, stainless steel and high temperature alloys. | FamilyName | SDMR-HQ |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0081
Name
Milling Indexable Inserts
FamilyName
SDMR-HQ
BrandName
Iscar
