FF WOMT 060212T-M IC928

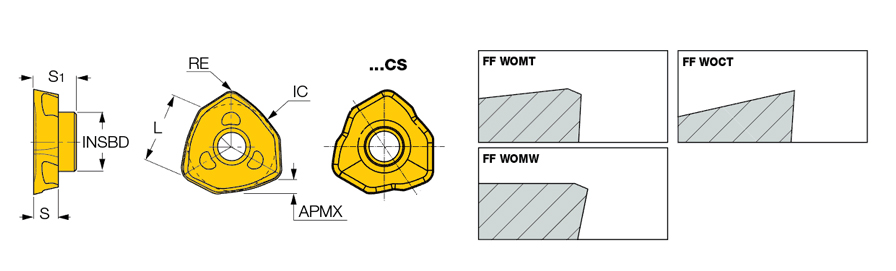

Arc cutting edge inserts for fast feed machining at small depths of cut. Designed with a cylinder on the bottom that is seated in a mating hole in the pocket (FEEDMILL).
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 1.5 mm/tooth |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 7 mm | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 2 mm | Minimum Feed per Tooth (fz(min)) | 0.7 mm/tooth |
| Depth of Cut Maximum (APMX) | 1.2 mm | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 2.7 mm | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC928 | Unit | M |
| Insert Body Diameter (INSBD) | 5.6 mm |
Product Features
| Family Description | Arc cutting edge inserts for fast feed machining at small depths of cut. Designed with a cylinder on the bottom that is seated in a mating hole in the pocket (FEEDMILL). | FamilyName | FF WOCT/WOMT/WOMW |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0040
Name
Milling Indexable Inserts
FamilyName
FF WOCT/WOMT/WOMW
BrandName
Iscar
