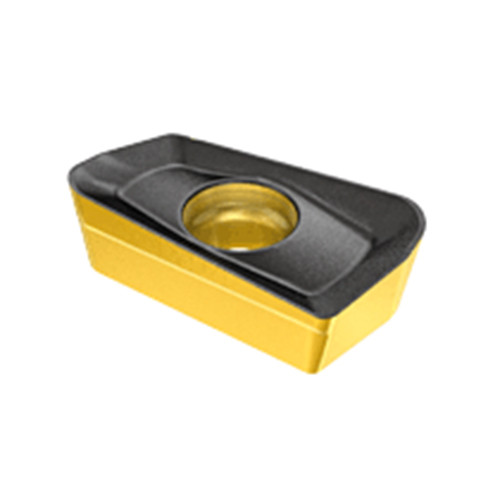

HP ANKT 070216PNTR IC928
HELIPLUS inserts with a 7 mm helical edge and various corner radii for general use.

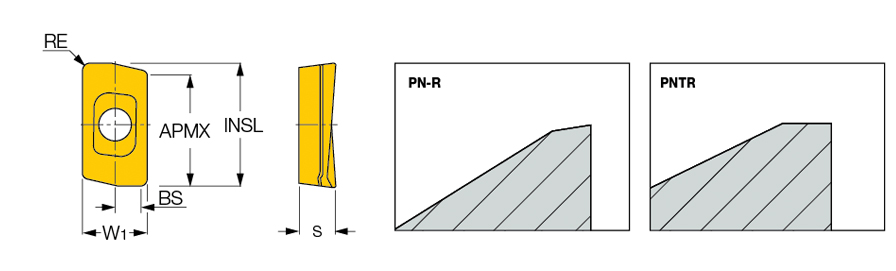

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| Application | | Counter Boring | Facing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 8.7 mm | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 1.6 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Depth of Cut Maximum (APMX) | 7.7 mm | Number of Cutting Edges | 2 |
| Insert Width (W1) | 4.5 mm | Cutting Edge Effective Length (LE) | 7.7 mm |
| Insert Thickness (S) | 2.6 mm | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC928 | Unit | M |
Product Features
| Family Description | HELIPLUS inserts with a 7 mm helical edge and various corner radii for general use. | FamilyName | HP ANKT/ANCT 0702 PN-R/PNTR |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0021
Name
Milling Indexable Inserts
FamilyName
HP ANKT/ANCT 0702 PN-R/PNTR
BrandName
Iscar
