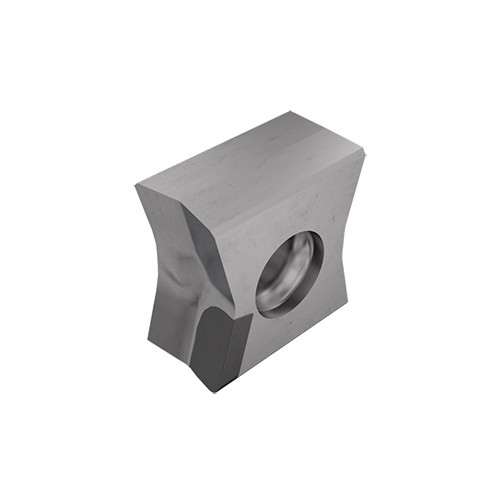

LNAW 1106PN-R-S IB85
TANGMILL inserts with a PCBN brazed tip. Use on F90LN milling cutters for machining hardened and cast steel with over 45 HRc, grey and nodular cast iron, powder compacted and sintered metals and heat resistant alloys.
| Applicable Material | | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Application | | Facing | Shouldering | | Cutting Direction (HAND) | Right Hand |

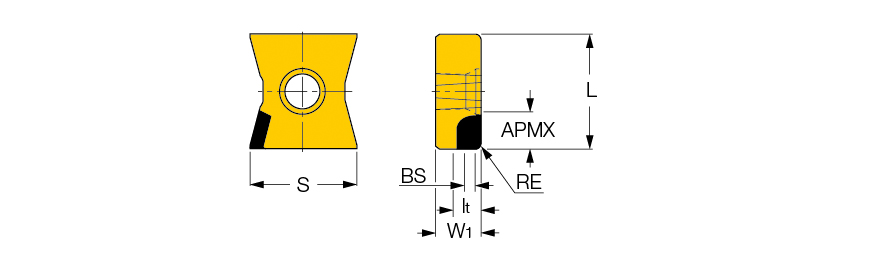

| Insert Length (INSL) | 11.17 mm | Cutting Edge Material | PCBN |
| Corner Radius (RE) | 0.8 mm | Tool Type | Turn Ultra hard Inserts |
| Depth of Cut Maximum (APMX) | 5 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Insert Width (W1) | 6 mm | Number of Cutting Edges | 1 |
| Insert Thickness (S) | 11.9 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
| Coating | Uncoated | Unit | M |
| Grade | IB85 |
Product Features
| Family Description | TANGMILL inserts with a PCBN brazed tip. Use on F90LN milling cutters for machining hardened and cast steel with over 45 HRc, grey and nodular cast iron, powder compacted and sintered metals and heat resistant alloys. | FamilyName | LNAW-11 (CBN) |

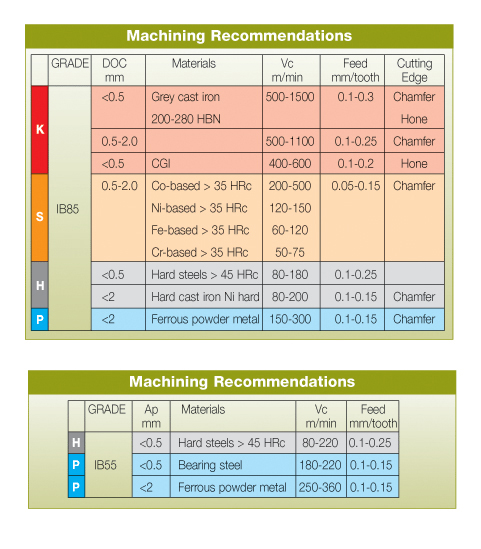

| Remarks | The LNAW PN-R.. is 0.03 mm edge-honed for finishing applications, while the LNAW PNTR... has a chamfered edge for rough milling applications For D.O.C. and machining recommendations, click on More Info | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
0.0145
Name
Milling Indexable Inserts
FamilyName
LNAW-11 (CBN)
BrandName
Iscar
