H490 ANCX 120508PDR IC330

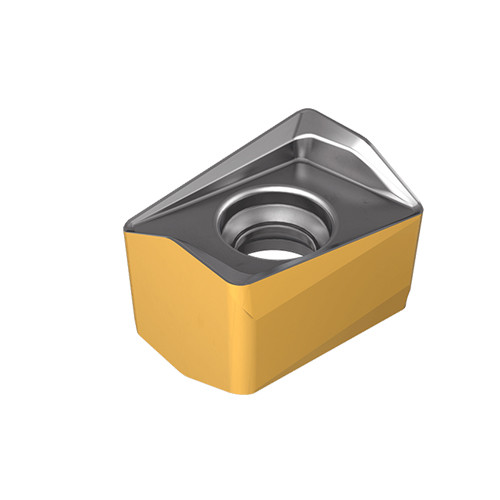

Double-sided rectangular inserts with 4 helical cutting edges (HELIDO 490 line).
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | IC330 |
| Application | | Counter Boring | Facing | Shouldering | Side Plunging | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |

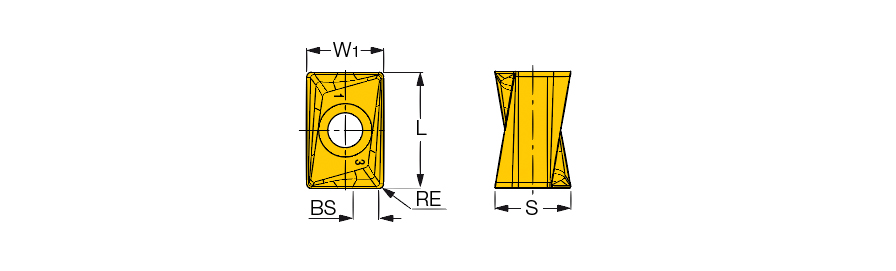

| Insert Length (INSL) | 13.67 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 11 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Insert Width (W1) | 10 mm | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 9.45 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
| Coating | TiCN+TiN | Unit | M |
Product Features
| Family Description | Double-sided rectangular inserts with 4 helical cutting edges (HELIDO 490 line). | FamilyName | H490 ANKX/ANCX-12 |
| Remarks | ANKX-utility inserts, ANCX-precision inserts. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0105
Name
Milling Indexable Inserts
FamilyName
H490 ANKX/ANCX-12
BrandName
Iscar
