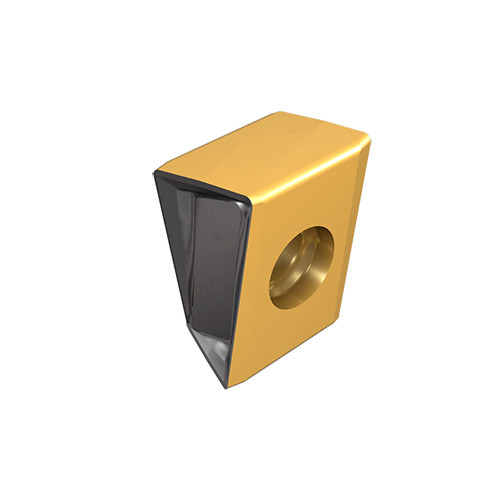

T490 LNMT 0804PNR IC5400
HELITANG - Tangentially clamped inserts with 4 helical cutting edges. The unique pocket design, prevents insert pull-out and enables tools with larger core diameters compared with regular radially orientated inserts.
| Applicable Material | | Steel | Stainless Steel | | Grade | IC5400 |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.18 mm/tooth |

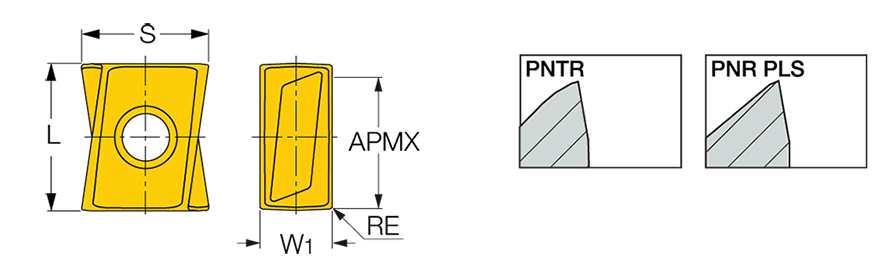

| Insert Length (INSL) | 8.59 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.4 mm | Tool Type | Mill Tangential Inserts |
| Depth of Cut Maximum (APMX) | 8 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Insert Width (W1) | 4.24 mm | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 7.43 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
Product Features
| Family Description | HELITANG - Tangentially clamped inserts with 4 helical cutting edges. The unique pocket design, prevents insert pull-out and enables tools with larger core diameters compared with regular radially orientated inserts. | FamilyName | T490 LNMT/LNHT 0804 |
| Remarks | LNMT-utility inserts, LNHT-precision inserts Click on More Info to see possible ramp down angle for T490 LN.. 080404PNR-RD inserts | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0036
Name
Milling Indexable Inserts
FamilyName
T490 LNMT/LNHT 0804
BrandName
Iscar
