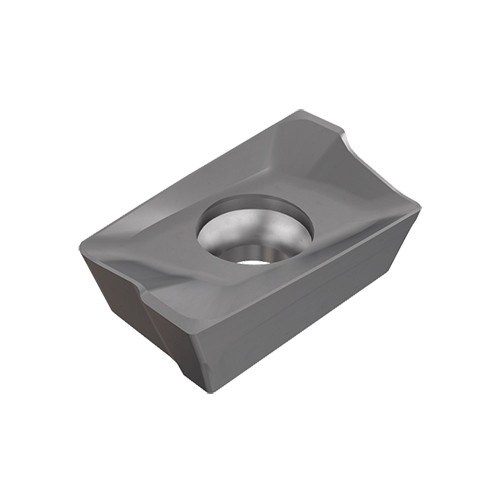

HM90 APCT 100308-HP IC380
HELI2000 insert with a sharp cutting edge used for semi-finish and finishing applications. Recommended for machining austenitic stainless steel, titanium and high temperature alloys.
| Applicable Material | | Hard Materials | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Application | | Countersinking | Drill Mill | Facing | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Tool Type | Single sided Inserts |

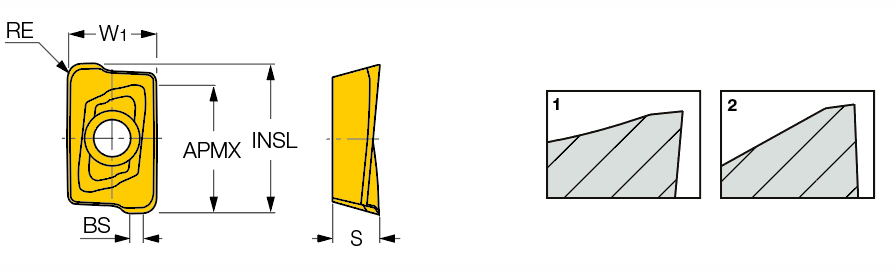

| Insert Length (INSL) | 11.46 mm | Figure | 2 |
| Corner Radius (RE) | 0.8 mm | Minimum Feed per Tooth (fz(min)) | 0.06 mm/tooth |
| Depth of Cut Maximum (APMX) | 9.8 mm | Number of Cutting Edges | 2 |
| Insert Width (W1) | 6.8 mm | Cutting Edge Effective Length (LE) | 9.5 mm |
| Insert Thickness (S) | 3.53 mm | Measurement Type | Metric |
| Coating | TiCN+TiN | Body Material | Carbide |
| Grade | IC380 | Unit | M |
| Maximum Feed per Tooth (fz(max)) | 0.12 mm/tooth |
Product Features
| Family Description | HELI2000 insert with a sharp cutting edge used for semi-finish and finishing applications. Recommended for machining austenitic stainless steel, titanium and high temperature alloys. | FamilyName | HM90 APCT 1003 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0033
Name
Milling Indexable Inserts
FamilyName
HM90 APCT 1003
BrandName
Iscar
Related Documentation

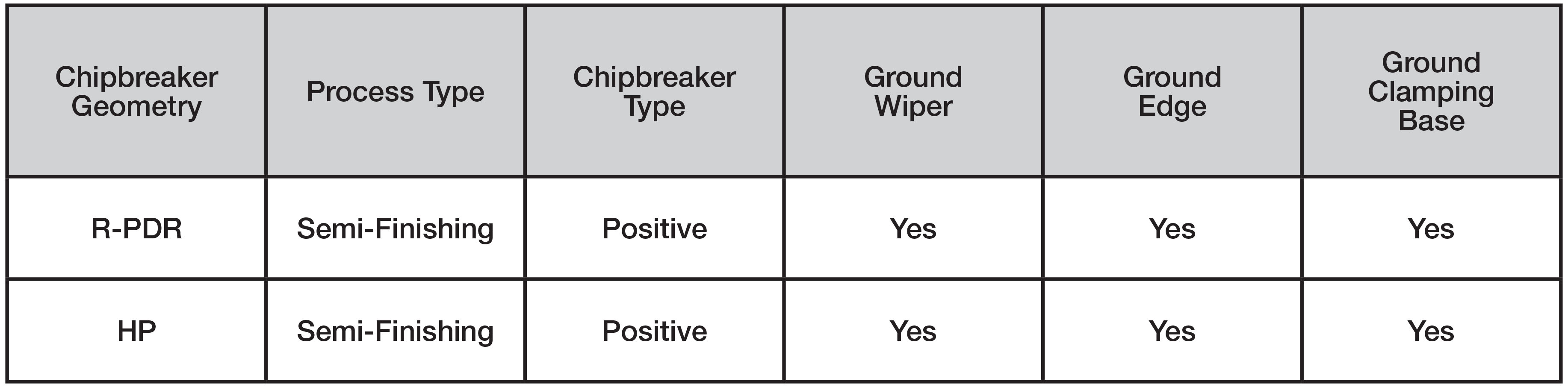

HM90 APCT 100308-HP o Peripherally ground insert with sharp cutting edges o Reinforced cutting edge with high positive rake angle o Ideal for semi-finishing and finishing applications o Recommended for machining materials which require a sharp positive cutting edge. Excellent performance, especially when milling PH high temperature alloys
