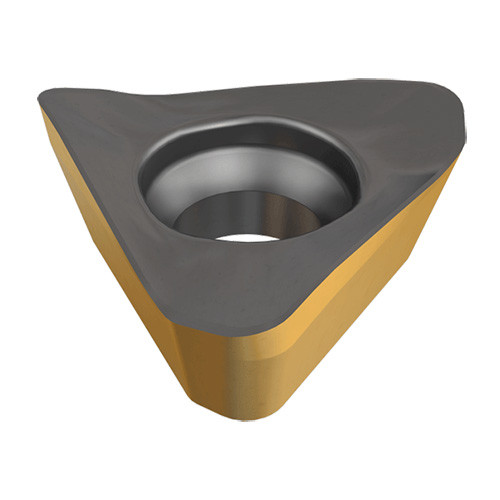

HM390 TPKT 1003PDR IC810
Triangular inserts with 3 helical cutting edges for 90° shoulder accuracy. For general use applications.
| Applicable Material | | Steel | Cast Iron | | Grade | IC810 |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |

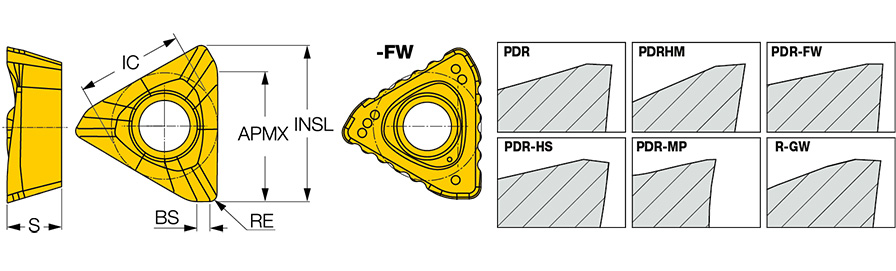

| Insert Length (INSL) | 10.9 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 8 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Inscribed Circle Diameter (IC) | 7.5 mm | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 3.85 mm | Cutting Edge Effective Length (LE) | 8 mm |
| Wiper Edge Length (BS) | 0.7 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 60 Degrees | Body Material | Carbide |
| Coating | AlTiCrN+TiN | Unit | M |
Product Features
| Family Description | Triangular inserts with 3 helical cutting edges for 90° shoulder accuracy. For general use applications. | FamilyName | HM390 TPKT/CT 1003 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0033
Name
Milling Indexable Inserts
FamilyName
HM390 TPKT/CT 1003
BrandName
Iscar
