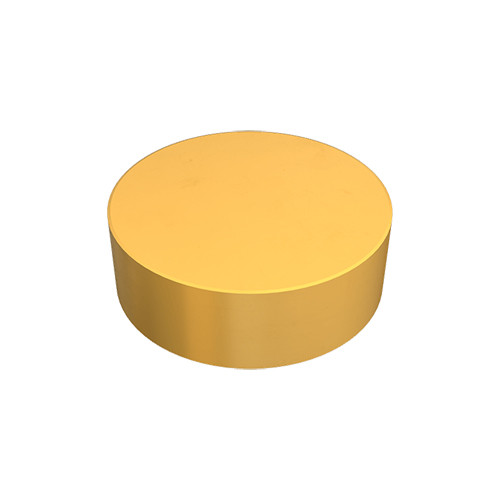

RNGN 120700 T00520 IS45
Negative round double-sided ceramic inserts for machining cast iron, hardened steel, and heat-resistant alloys
| Applicable Material | | Cast Iron | Super-Alloys / Titanium | | Min D.O.C. | 0.5 mm |
| Application | | Ext. Round Face & Turn | Facing | Helical Interpolation | Profiling | Rampdown | Shouldering | | Depth of Cut Maximum (APMX) | 3 mm |
| Insert Size | 5 T022 | Min. Turning Feed (ft(min)) | 0.05 mm/rev |

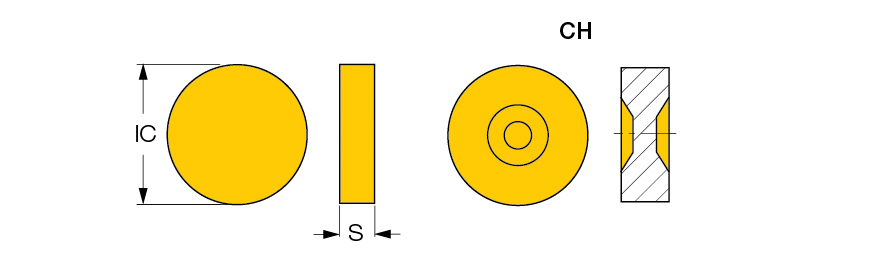

| Insert Thickness (S) | 7.94 mm | Max. Turning Feed (ft(max)) | 0.4 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Material | Ceramic | Measurement Type | Metric |
| Grade | IS45 | Body Material | Carbide |
| Tool Type | Turn Ultra hard Inserts | Unit | M |
Product Features
| Family Description | Negative round double-sided ceramic inserts for machining cast iron, hardened steel, and heat-resistant alloys | FamilyName | RNGN (CER) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Japan |
Shipping Info
Weight per item
0.0057
Name
Turning Indexable Inserts
FamilyName
RNGN (CER)
BrandName
Iscar
