| Applicable Material | | Aluminum / Non-Ferrous Materials | | Tool Type | Turn Inserts AL, HTA Geometric |
| Application | | Ext. 80° Diamond 91° Approach | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 90° Approach | Int. 80° Diamond 95° Approach | Int. Back Turning 80° Diamond | Int. Chamfering 80° Diamond | | Min D.O.C. | 0.5 mm |
| Insert Style | CCGT | Depth of Cut Maximum (APMX) | 2.5 mm |
| Corner Radius (RE) | 0.2 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Insert Size | 09T302 | Max. Turning Feed (ft(max)) | 0.25 mm/rev |

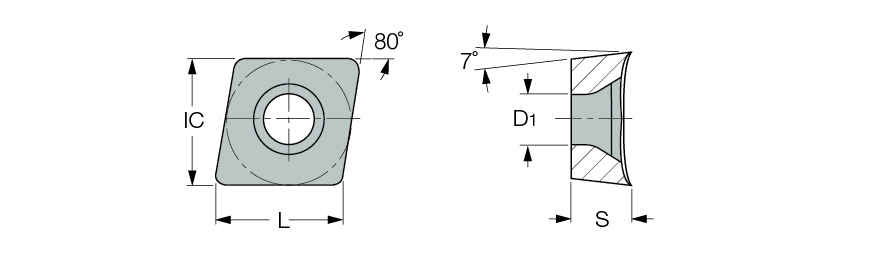

| Cutting Edge Length (L) | 9.7 mm | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 3.97 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 9.52 mm | Chip Breaker Type | AS |
| Coating | DLC | Measurement Type | Metric |
| Grade | IC1520 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 4.4 mm | Unit | M |
Product Features

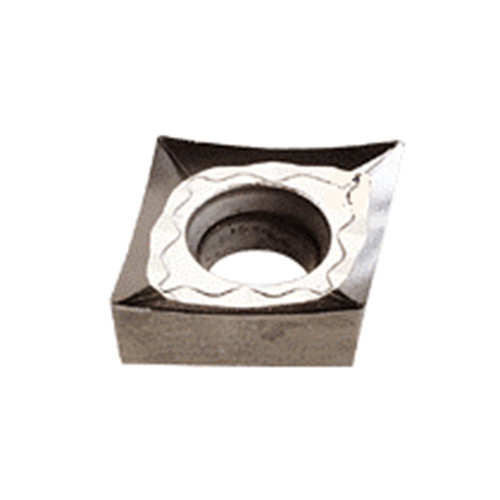

| Family Description | 80° rhombic inserts with a 7° positive flank, very positive rake angle and sharp cutting edge for machining aluminum. | FamilyName | CCGT-AS |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Korea |
Shipping Info
Weight per item
0.0045
Name
Turning Indexable Inserts
FamilyName
CCGT-AS
BrandName
Iscar
