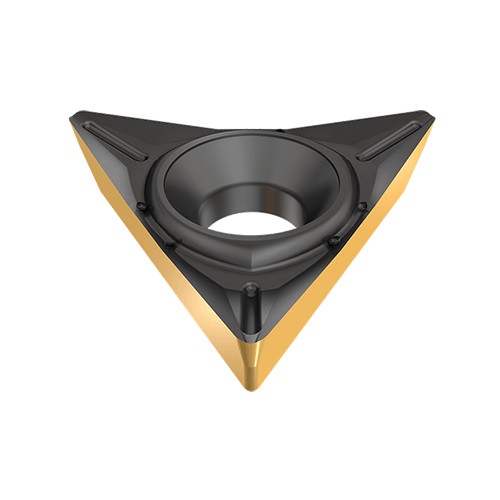

TPGT 110202-SP IC907
Super positive 11° clearance triangular insert. Used for fine boring and finish turning.
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 3 mm |
| Application | | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | | Tool Type | Turn Positive Inserts |
| Insert Style | TPGT | Min D.O.C. | 0.4 mm |
| Corner Radius (RE) | 0.2 mm | Depth of Cut Maximum (APMX) | 1 mm |
| Insert Size | 110202 | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 11 mm | Max. Turning Feed (ft(max)) | 0.15 mm/rev |
| Insert Thickness (S) | 2.38 mm | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 6.35 mm | Chip Breaker Type | SP |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC907 | Unit | M |
Product Features
| Family Description | Super positive 11° clearance triangular insert. Used for fine boring and finish turning. | FamilyName | TPGT-SP |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0023
Name
Turning Indexable Inserts
FamilyName
TPGT-SP
BrandName
Iscar
