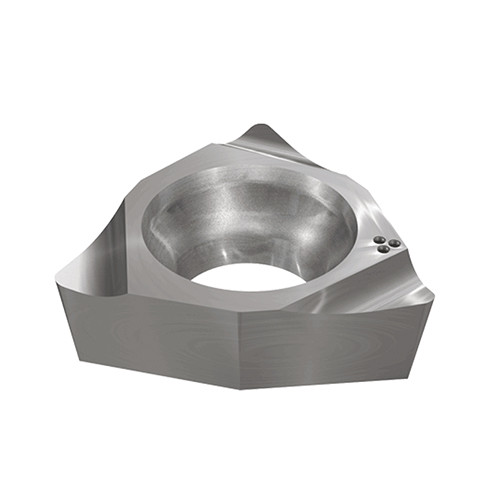

WCGT 020102L IC908
Trigon 7° positive flank inserts with a chipformer. Used for finishing on miniature boring bars, provide excellent surface finish. Suitable for a wide range of materials.
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Type | Turn Positive Inserts |
| Application | | Int. 80° Trigon 93° Approach | Int. 80° Trigon 95° Approach | | Min D.O.C. | 0.4 mm |
| Insert Style | WCGT | Depth of Cut Maximum (APMX) | 2 mm |

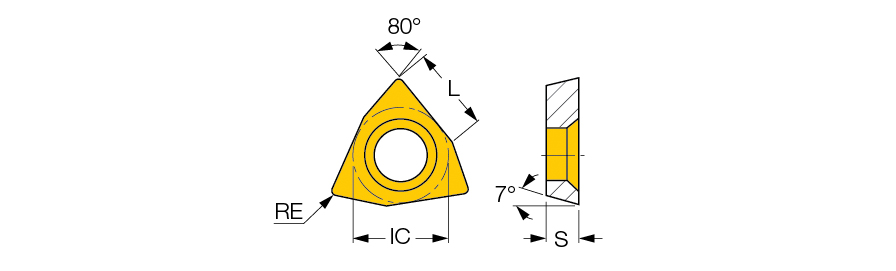

| Corner Radius (RE) | 0.2 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Size | 020102 | Max. Turning Feed (ft(max)) | 0.1 mm/rev |
| Cutting Edge Length (L) | 2.18 mm | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 1.59 mm | Chip Breaker Type | T |
| Inscribed Circle Diameter (IC) | 3.97 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
| Grade | IC908 |
Product Features
| Family Description | Trigon 7° positive flank inserts with a chipformer. Used for finishing on miniature boring bars, provide excellent surface finish. Suitable for a wide range of materials. | FamilyName | WCGT |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0015
Name
Turning Indexable Inserts
FamilyName
WCGT
BrandName
Iscar
