WNMA 060404 IC5010
Double-sided trigon inserts, used for short chipping materials such as cast iron.
| Applicable Material | | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 80° Trigon 95° Approach | Int. 80° Trigon 95° Approach | | Min D.O.C. | 1 mm |
| Insert Style | WNMA | Depth of Cut Maximum (APMX) | 3 mm |
| Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Insert Size | 331 | Max. Turning Feed (ft(max)) | 0.5 mm/rev |

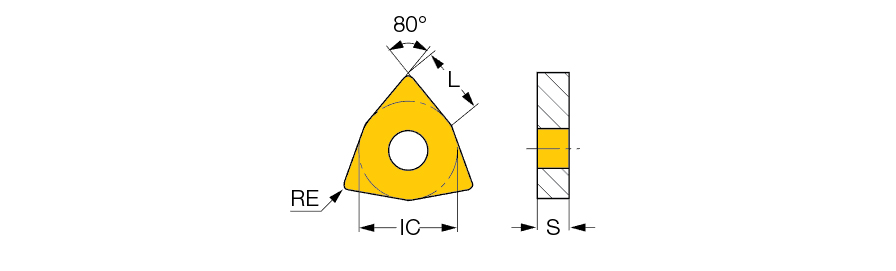

| Cutting Edge Length (L) | 6.52 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 4.76 mm | Chip Breaker Type | A |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
| Grade | IC5010 |
Product Features
| Family Description | Double-sided trigon inserts, used for short chipping materials such as cast iron. | FamilyName | WNMA/WNMA-WG |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0068
Name
Turning Indexable Inserts
FamilyName
WNMA/WNMA-WG
BrandName
Iscar
