| Applicable Material | | Steel | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 80° Trigon 95° Approach | Int. 80° Trigon 95° Approach | | Min D.O.C. | 0.8 mm |

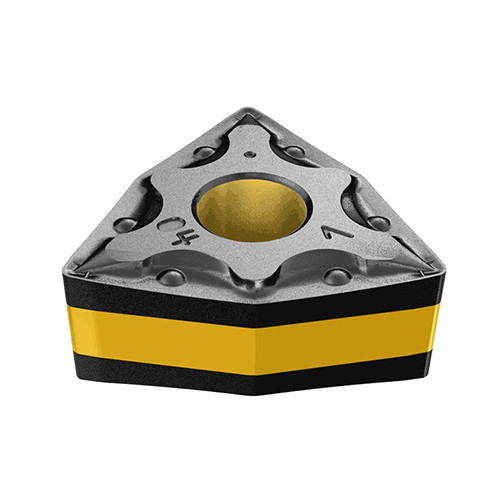

| Insert Style | WNMG | Depth of Cut Maximum (APMX) | 3.5 mm |
| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.07 mm/rev |
| Insert Size | 080408 | Max. Turning Feed (ft(max)) | 0.35 mm/rev |
| Cutting Edge Length (L) | 8.7 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 4.76 mm | Chip Breaker Type | WF |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiCN+TiN | Unit | M |
| Grade | IC8150 |
Product Features

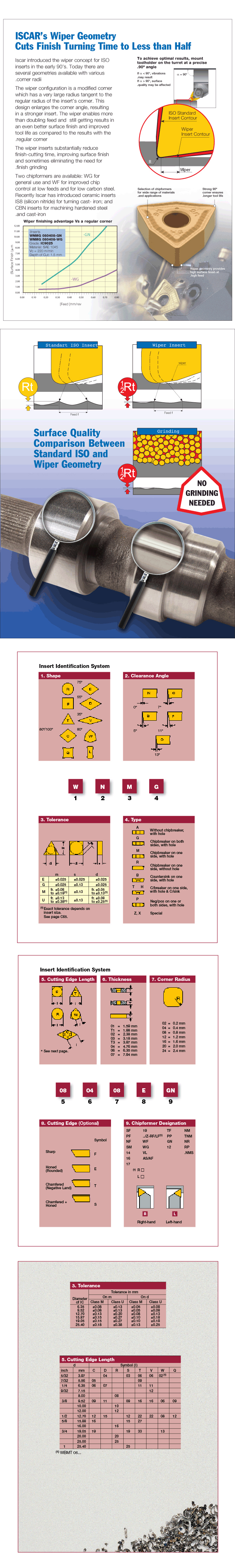

| Family Description | Double-sided trigon wiper inserts used for finishing operations at high feeds. Three to five times better surface finish compared to standard turning inserts at the same feeds. | FamilyName | WNMG-WF |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0104
Name
Turning Indexable Inserts
FamilyName
WNMG-WF
BrandName
Iscar
