| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Tool Type | Turn Positive Inserts |
| Application | | Int. 80° Diamond 95° Approach | | Min D.O.C. | 0.25 mm |
| Insert Style | CPGT | Depth of Cut Maximum (APMX) | 2 mm |
| Corner Radius (RE) | 0.1 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Size | 060201 | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Cutting Edge Length (L) | 6.45 mm | Clearance Angle Major (AN) | 11 Degrees |
| Insert Thickness (S) | 2.38 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 6.35 mm | Chip Breaker Type | SM |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC907 | Unit | M |
| Fixing Hole Diameter (D1) | 2.8 mm |
Product Features

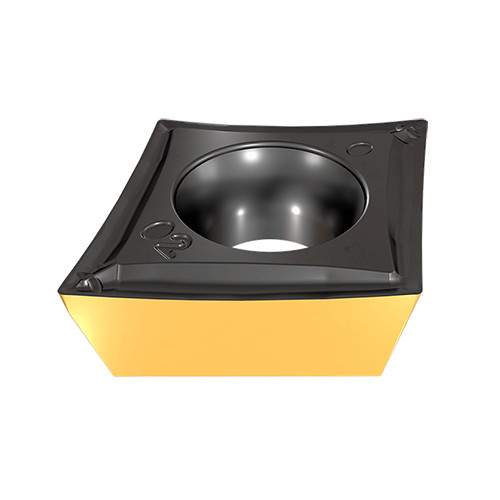

| Family Description | 80° rhombic 11° positive flank inserts used for semi-finish and finish turning. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for a wide range of materials including soft and exotic alloys. | FamilyName | CPGT-SM |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0022
Name
Turning Indexable Inserts
FamilyName
CPGT-SM
BrandName
Iscar
