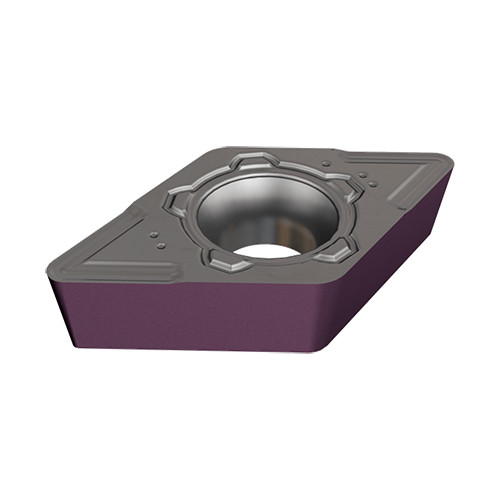

DCMT 11T308-M3M IC6025
55° rhombic 7° positive flank inserts, first choice for machining stainless and low carbon steel. Positive rake angle, low cutting forces, providing very reliable performance and excellent tool life.
| Applicable Material | | Stainless Steel | | Tool Type | Turn Positive Inserts |
| Application | | Ext. 55° Diamond 107.5° Appr. | Int. 55° Diamond 93 95° Approac | Y Axis for Swiss Type Machines | | Min D.O.C. | 1.2 mm |

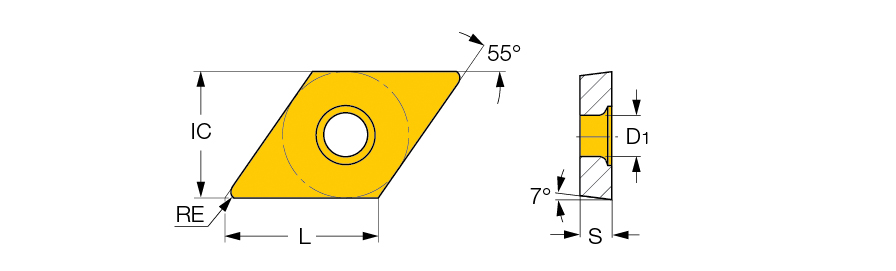

| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 3 mm |
| Insert Size | 3-2-M3 | Min. Turning Feed (ft(min)) | 0.13 mm/rev |
| Cutting Edge Length (L) | 11.6 mm | Max. Turning Feed (ft(max)) | 0.35 mm/rev |
| Insert Thickness (S) | 3.97 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 9.52 mm | Chip Breaker Type | M3M |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | IC6025 | Unit | M |
| Fixing Hole Diameter (D1) | 4.4 mm |
Product Features
| Family Description | 55° rhombic 7° positive flank inserts, first choice for machining stainless and low carbon steel. Positive rake angle, low cutting forces, providing very reliable performance and excellent tool life. | FamilyName | DCMT-M3M |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0059
Name
Turning Indexable Inserts
FamilyName
DCMT-M3M
BrandName
Iscar
