| Applicable Material | | Steel | Cast Iron | | Tool Type | Turn Positive Inserts |
| Application | | Ext. Round Face & Turn | | Min D.O.C. | 2 mm |

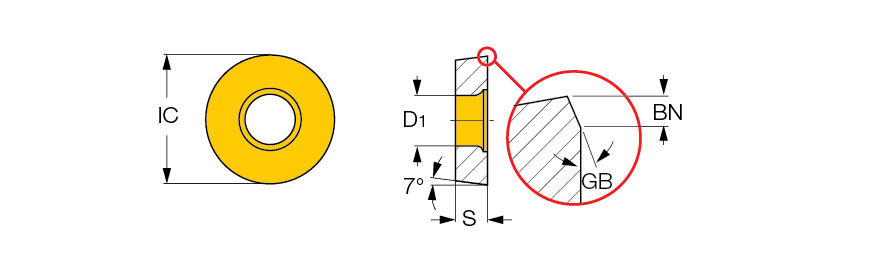

| Insert Style | RCMT | Depth of Cut Maximum (APMX) | 8 mm |
| Insert Size | 1606M0 | Min. Turning Feed (ft(min)) | 0.4 mm/rev |
| Insert Thickness (S) | 6.35 mm | Max. Turning Feed (ft(max)) | 0.6 mm/rev |
| Inscribed Circle Diameter (IC) | 16 mm | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Material | Carbide | Chip Breaker Type | SR |
| Coating | TiCN+Al2O3+TiCN+TiN | Measurement Type | Metric |
| Grade | IC8150 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 5.5 mm | Unit | M |
Product Features
| Family Description | Round 7° positive flank inserts for medium profiling on a wide range of materials. Designed for machining bearing steel. | FamilyName | RCMT-SR |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0144
Name
Turning Indexable Inserts
FamilyName
RCMT-SR
BrandName
Iscar
