| Applicable Material | | Stainless Steel | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 93° Approach | Int. 35° Diamond 93° Approach | | Min D.O.C. | 0.1 mm |

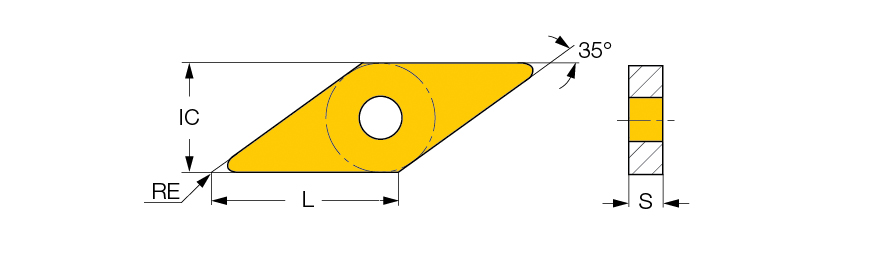

| Insert Style | VNMG | Depth of Cut Maximum (APMX) | 1.5 mm |
| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Size | 160408 | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Cutting Edge Length (L) | 16.6 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 4.76 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 9.52 mm | Chip Breaker Type | F3M |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | IC6025 | Unit | M |
| Fixing Hole Diameter (D1) | 3.81 mm |
Product Features

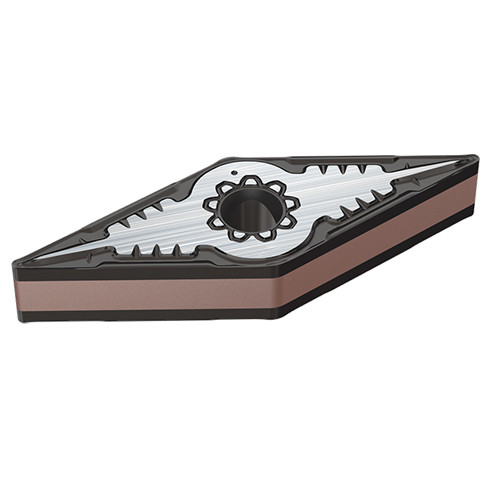

| Family Description | Double-sided 35° rhombic insert for semi-finishing and finishing on stainless steel. Low cutting forces due to very sharp edge and positive rake. | FamilyName | VNMG-F3M |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0126
Name
Turning Indexable Inserts
FamilyName
VNMG-F3M
BrandName
Iscar
