| Applicable Material | | Steel | Stainless Steel | | Grade | IC20N |
| Application | | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle Facing | Int. 60° Triangle 91° Approach | | Tool Type | Turn Negative Inserts |
| Insert Style | TPMR | Min D.O.C. | 0.5 mm |

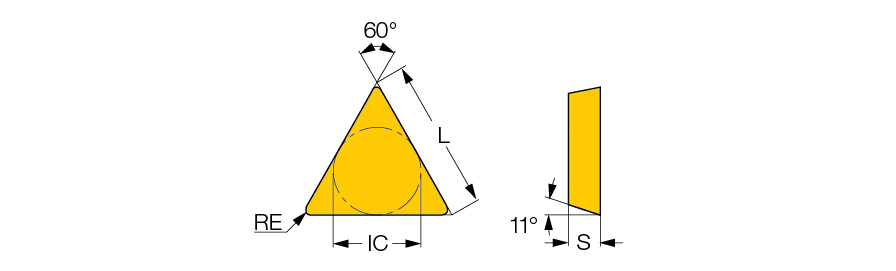

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 3 mm |
| Insert Size | 160304 | Min. Turning Feed (ft(min)) | 0.07 mm/rev |
| Cutting Edge Length (L) | 16.5 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Insert Thickness (S) | 3.18 mm | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Cermet | Body Material | Carbide |
| Coating | Uncoated | Unit | M |
Product Features

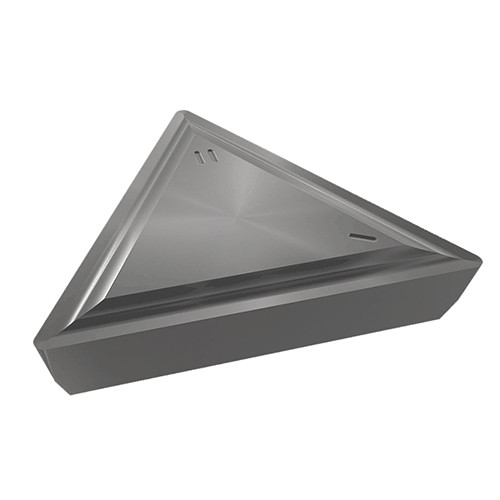

| Family Description | Triangular 11° Positive Inserts with a Positive Chipformer Exerting, Low Cutting Forces for Finish Turning Applications | FamilyName | TPMR-FTF |
| Remarks | For chipformer selection guide of cermet inserts, and for dimensions and tolerances, click on More Info | BrandName | Iscar |
| COO | Korea |
Shipping Info
Weight per item
0.0062
Name
Turning Indexable Inserts
FamilyName
TPMR-FTF
BrandName
Iscar
