| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 55° Diamond 93° Approach | Int. 55° Diamod 93° Back Appro | Int. 55° Diamond 100° Approach | | Min D.O.C. | 0.3 mm |
| Insert Style | DNGP | Depth of Cut Maximum (APMX) | 2 mm |

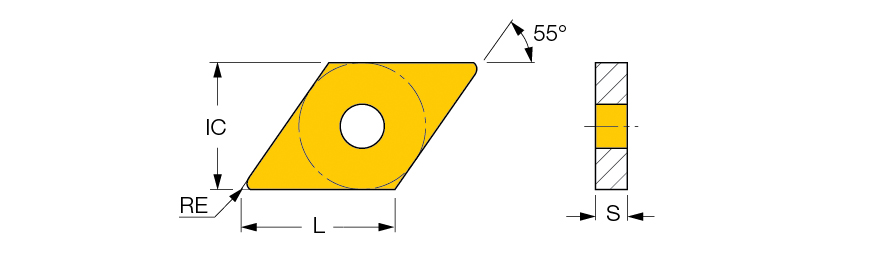

| Corner Radius (RE) | 0.2 mm | Min. Turning Feed (ft(min)) | 0.08 mm/rev |
| Insert Size | 070302 | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Cutting Edge Length (L) | 7.7 mm | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 3.18 mm | Chip Breaker Type | F2M |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
| Grade | IC908 |
Product Features
| Family Description | Double-sided inserts, for finishing conditions on stainless steel. Low cutting forces due to sharp and positive rake. Negative and positive alternating flanks that enabled bar design with a firm insert clamping and small minimum diameter. | FamilyName | DNGP-F2M |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Japan |
Shipping Info
Weight per item
0.0030
Name
Turning Indexable Inserts
FamilyName
DNGP-F2M
BrandName
Iscar
