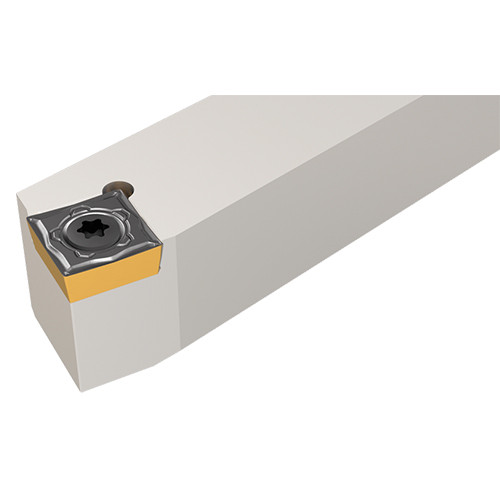

SSBCR 1616H-09
75° lead angle screw lock tools carrying square inserts with 7° clearance angle.

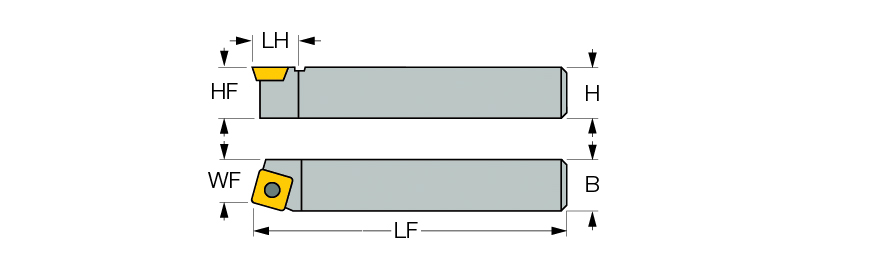

Shank Height (H) | 16 mm | Application | | Ext. 90° Square 75° Approach | |
Shank Width (B) | 16 mm | Rake Angle Axial (GAMP) | 0 Degrees |
Functional Length (LF) | 100 mm | Rake Angle Radial (GAMF) | 0 Degrees |
Head Length (LH) | 15 mm | Body Material | Steel |
Functional Width (WF) | 13 mm | Tool Type | Square Shank Turning Tools |
Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
Cutting Direction (HAND) | Right Hand | Unit | M |
Master Insert Identification (MIID) | SC.. 09T3 |

Product Features
Family Description | 75° lead angle screw lock tools carrying square inserts with 7° clearance angle. | FamilyName | SSBCR/L |
COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.2290
Name
General Indexable Turning Tools
FamilyName
SSBCR/L
BrandName
Iscar
