SVJNL 1616H-12F

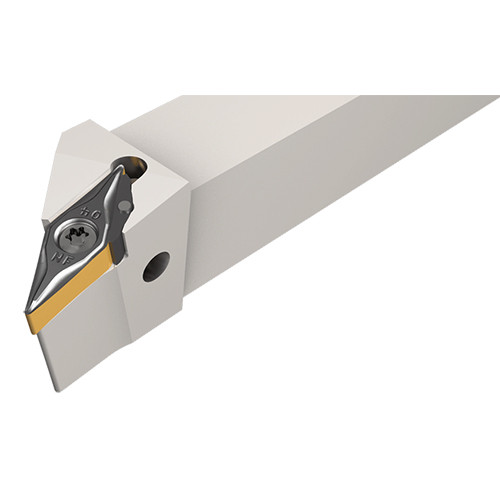

Screw lock tools with a wedge for high rigidity, carrying 35° negative inserts for profiling applications.

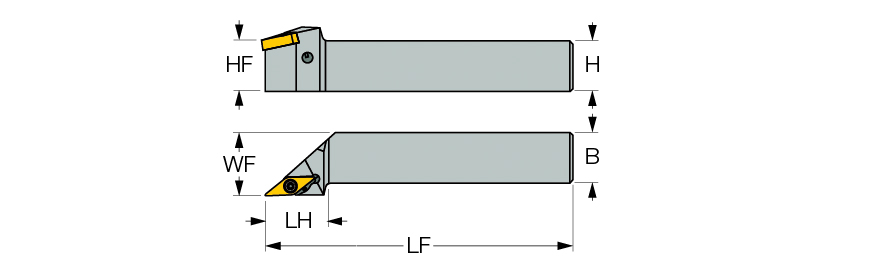

| Shank Height (H) | 16 mm | Application | | Ext. 35° Diamond 93° Approach | |
| Shank Width (B) | 16 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 100 mm | Rake Angle Radial (GAMF) | -12 Degrees |
| Head Length (LH) | 25 mm | Body Material | Steel |
| Functional Width (WF) | 20 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 7.15 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Unit | M |
| Master Insert Identification (MIID) | VNMG 12T3 |
Product Features
| Family Description | Screw lock tools with a wedge for high rigidity, carrying 35° negative inserts for profiling applications. | FamilyName | SVJNR/L-F |
| Remarks | Repeatability: for VNMG is ±0.06 mm, for VNGG is ±0.02 mm | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2140
Name
General Indexable Turning Tools
FamilyName
SVJNR/L-F
BrandName
Iscar
