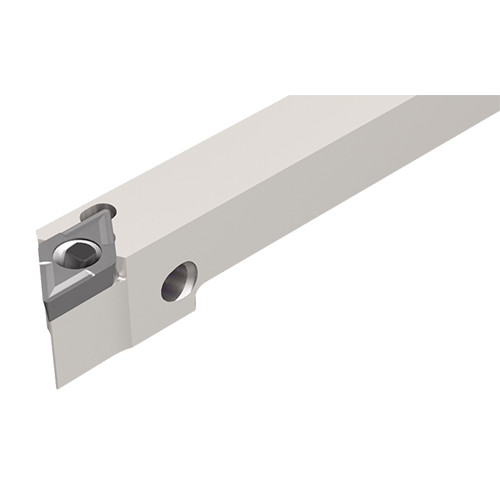

PDACR 1616M-11S
Side lever lock tools carrying 55° positive rhombic inserts for Swiss automatic machines.
| Shank Height (H) | 16 mm | Application | | Ext. 55° Diamond 91° Approach | |
| Shank Width (B) | 16 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 150 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Width (WF) | 16 mm | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 9.52 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | DC..11T3 | Unit | M |
Product Features
| Family Description | Side lever lock tools carrying 55° positive rhombic inserts for Swiss automatic machines. | FamilyName | PDACR/L-S |
| Remarks | The clamping screw may by transferred to the opposite side if needed | BrandName | Iscar |
| COO | Switzerland |
Shipping Info
Weight per item
0.3100
Name
General Indexable Turning Tools
FamilyName
PDACR/L-S
BrandName
Iscar
