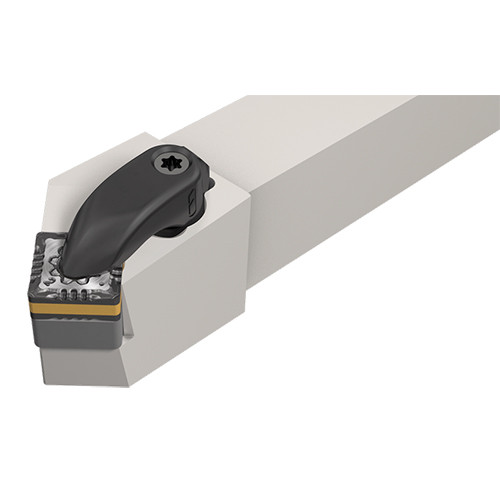

DSSNR 2020K-12
45° lead angle R-Clamp tools carrying negative square inserts, for longitudinal and facing applications.

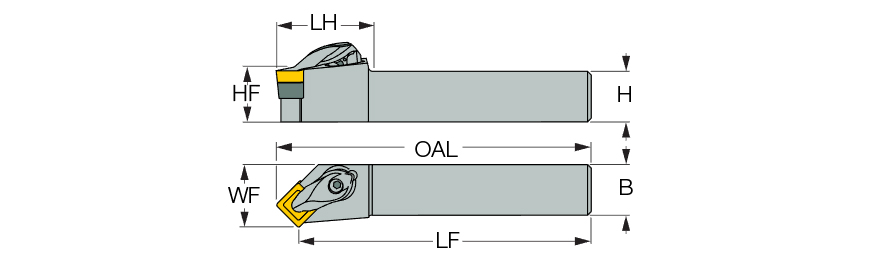

| Shank Height (H) | 20 mm | Master Insert Identification (MIID) | SNMG 1204 |
| Shank Width (B) | 20 mm | Application | | Ext. 90°Square 45°Face&Turn Ap | |
| Overall Length (OAL) | 133.3 mm | Rake Angle Axial (GAMP) | -5.5 Degrees |
| Functional Length (LF) | 125 mm | Rake Angle Radial (GAMF) | -5.5 Degrees |
| Head Length (LH) | 38 mm | Body Material | Steel |
| Functional Width (WF) | 25 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
Product Features
| Family Description | 45° lead angle R-Clamp tools carrying negative square inserts, for longitudinal and facing applications. | FamilyName | DSSNR/L |
| COO | Korea | BrandName | Iscar |
Shipping Info
Weight per item
0.4630
Name
General Indexable Turning Tools
FamilyName
DSSNR/L
BrandName
Iscar
