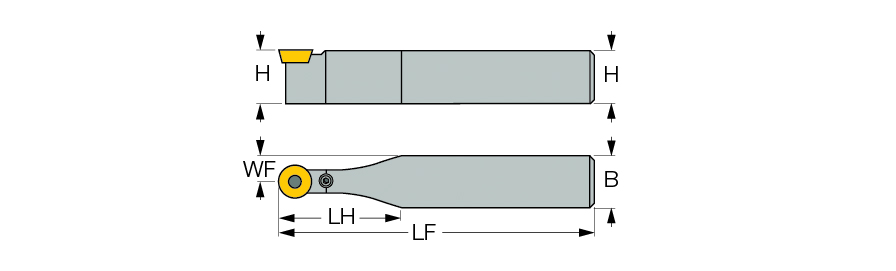

| Shank Height (H) | 50 mm | Master Insert Identification (MIID) | RCMX 3209 |
| Shank Width (B) | 50 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 350 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 90 mm | Body Material | Steel |
| Functional Width (WF) | 25 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 32 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Neutral | Unit | M |
Product Features

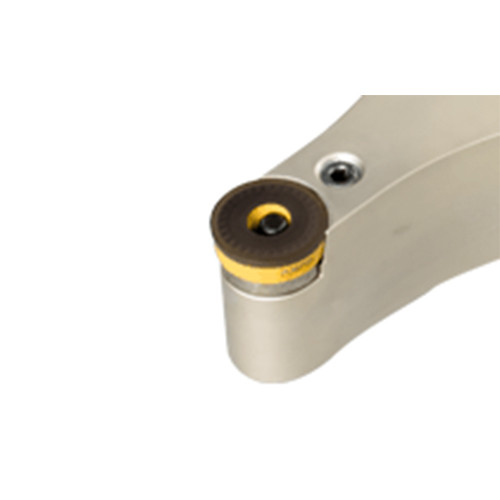

| Family Description | Lever lock tools carrying RCMX round inserts. | FamilyName | PRDCN |
| COO | Korea | BrandName | Iscar |
Shipping Info
Weight per item
6.1600
Name
General Indexable Turning Tools
FamilyName
PRDCN
BrandName
Iscar
