PRGCR 4040S-25
Lever lock tools carrying RCMX round inserts.

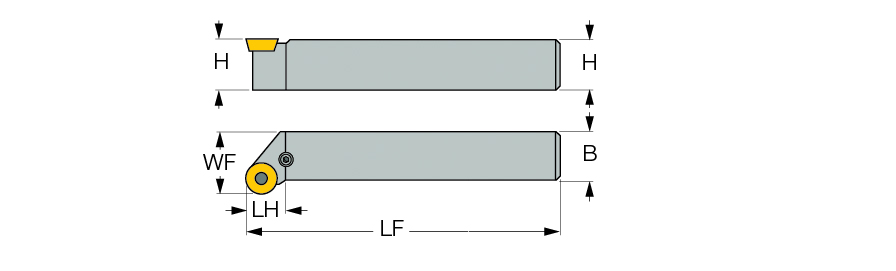

| Shank Height (H) | 40 mm | Application | | Ext. Round Face & Turn | |
| Shank Width (B) | 40 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 250 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 30 mm | Body Material | Steel |
| Functional Width (WF) | 50 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 25 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Master Insert Identification (MIID) | RCMX 2507 |
Product Features
| Family Description | Lever lock tools carrying RCMX round inserts. | FamilyName | PRGCR |
| COO | Korea | BrandName | Iscar |
Shipping Info
Weight per item
3.1090
Name
General Indexable Turning Tools
FamilyName
PRGCR
BrandName
Iscar
