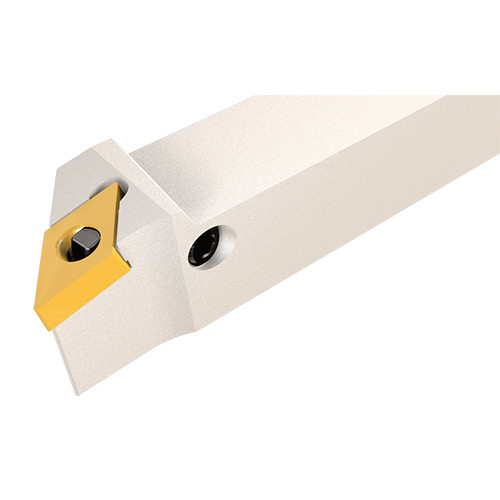

PDJNR 1616X-07S
Lever lock tools carrying DNGP 0703.. double-sided 55° rhombic inserts.

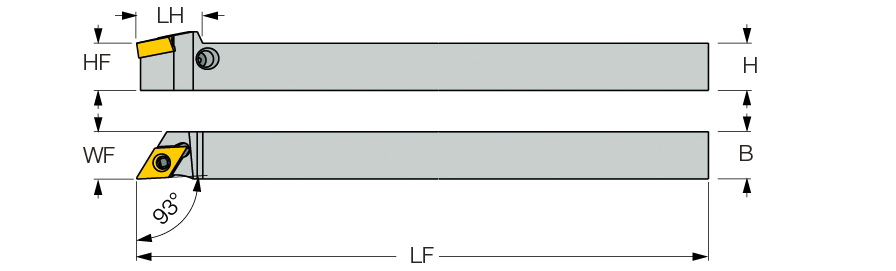

| Shank Height (H) | 16 mm | Application | | Ext. 55° Diamond 93° Approach | |
| Shank Width (B) | 16 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 120 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 18 mm | Body Material | Steel |
| Functional Width (WF) | 16 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Master Insert Identification (MIID) | DNGP 07 |
Product Features
| Family Description | Lever lock tools carrying DNGP 0703.. double-sided 55° rhombic inserts. | FamilyName | PDJNR/L-S |
| Remarks | Use a left-hand insert on a right-hand tool and vice versa. | BrandName | Iscar |
| COO | Japan |
Shipping Info
Weight per item
0.2560
Name
General Indexable Turning Tools
FamilyName
PDJNR/L-S
BrandName
Iscar
