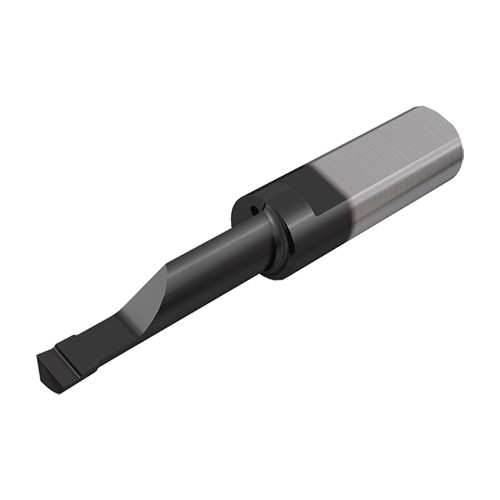

PICCO R 015.3015-20N IC908
PICCO-JETCUT mini inserts with internal coolant channel for deep face grooving at Dmin 15 mm

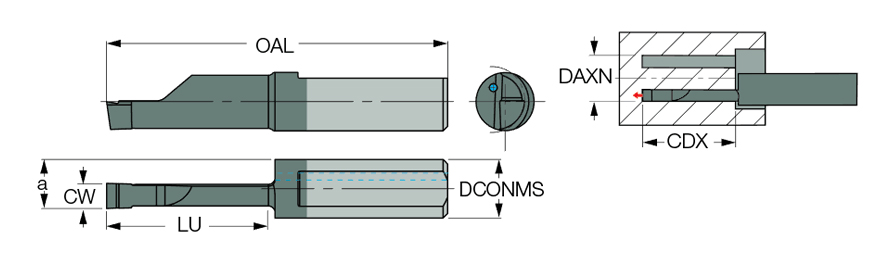

| Connection Diameter Machine Side (DCONMS) | 7.05 mm | Front End Width (a) | 5.9 mm |
| Functional Length (LF) | 41 mm | Usable Length (LU) | 20 mm |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Coating | TiAlN | Cutting Edge Material | Carbide |
| Grade | IC908 | Tool Type | Solid, Turning & Grooving |
| Application | | Face Grooving | Int. Face Grooving | | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | M |
Product Features
| Family Description | PICCO-JETCUT mini inserts with internal coolant channel for deep face grooving at Dmin 15 mm | FamilyName | PICCO-015-N (Face Grooving) |
| Remarks | Only right-hand inserts are available as standard, left-hand inserts on request All inserts are with sharp corners Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only | BrandName | Iscar |
| COO | Germany |
Shipping Info
Weight per item
0.0170
Name
Solid Boring Bars
FamilyName
PICCO-015-N (Face Grooving)
BrandName
Iscar
