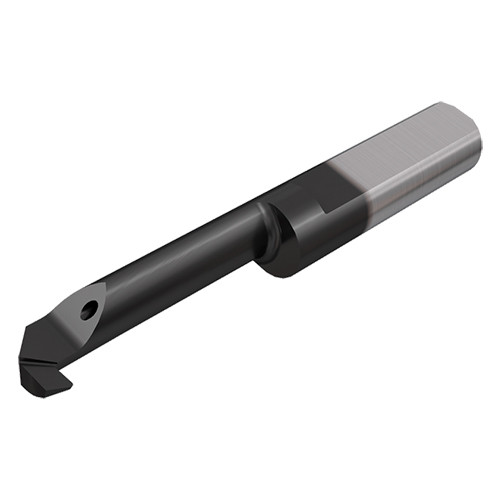

PICCO R 080.0003-15N IC908
Inserts with inner coolant channel, for internal back turning.

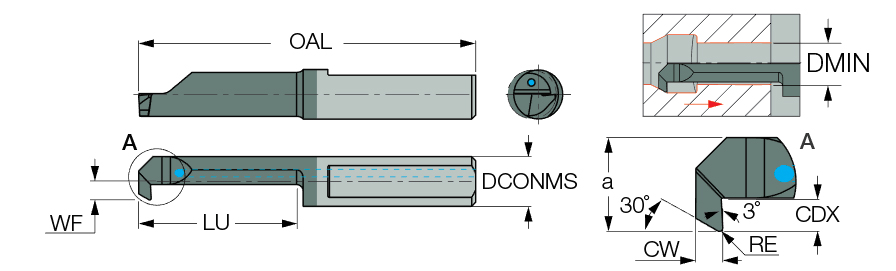

| Connection Diameter Machine Side (DCONMS) | 4.05 mm | Corner Radius (RE) | 0.1 mm |
| Minimum Bore Diameter (DMIN) | 3 mm | Cutting Depth Maximum (CDX) | 0.5 mm |
| Functional Length (LF) | 36 mm | Functional Width (WF) | 0.6 mm |
| Cutting Direction (HAND) | Right Hand | Usable Length (LU) | 14 mm |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Cutting Edge Material | Carbide |
| Application | | Int. Back Boring and Profiling | | Tool Type | Solid Carbide Turn Tool |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Front End Width (a) | 2.6 mm | Unit | M |
Product Features
| Family Description | Inserts with inner coolant channel, for internal back turning. | FamilyName | PICCO R/L 080-N (Back Turning) |
| Remarks | Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only | BrandName | Iscar |
| COO | Germany |
Shipping Info
Weight per item
0.0080
Name
Solid Boring Bars
FamilyName
PICCO R/L 080-N (Back Turning)
BrandName
Iscar
