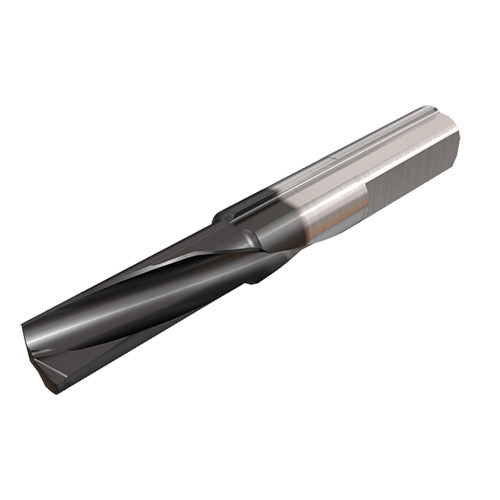

PICCO L-MF 6-5 L15 IC908
Multifunction solid carbide tools, for drilling, facing, internal and external turning on Swiss and small CNC machines. Part of the PASSPORT system

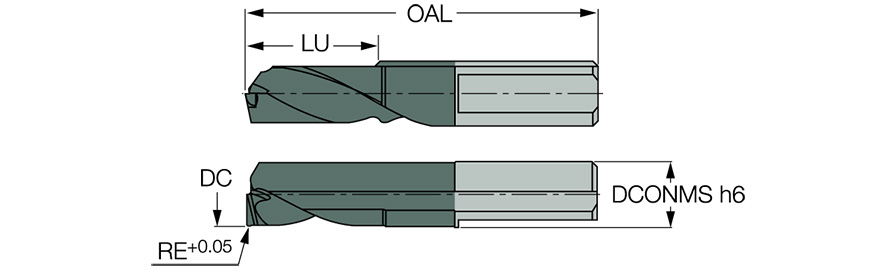

| Connection Diameter Machine Side (DCONMS) | 6 mm | Usable Length (LU) | 15 mm |
| Functional Length (LF) | 41 mm | Cutting Diameter (DC) | 5 mm |
| Cutting Direction (HAND) | Left Hand | Body Material | Carbide |
| Coating | TiAlN | Cutting Edge Material | Carbide |
| Grade | IC908 | Tool Type | Multifunction drilling, turning and grooving tools |
| Application | | Drilling Ext Face Int. Turning | | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | M |
| Corner Radius (RE) | 0.3 mm |
Product Features
| Family Description | Multifunction solid carbide tools, for drilling, facing, internal and external turning on Swiss and small CNC machines. Part of the PASSPORT system | FamilyName | PICCO-MF |
| Remarks | Dmin can be 0.1 mm smaller by shifting tool center Applications: drilling; face turning; internal chamfering; internal turning/ boring; internal profiling; external chamfering; external turning | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0280
Name
Solid Boring Bars
FamilyName
PICCO-MF
BrandName
Iscar
