EBT-T4 015-08/1.0C4M45 IC903

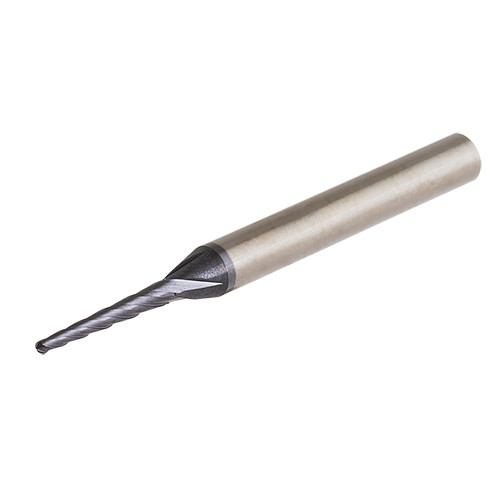

4 flute, 25° helix solid carbide tapered ball nose. Used for rib processing on hardened steel
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | IC903 |
| Application | | Profiling | | Cutting Edge Material | Carbide |

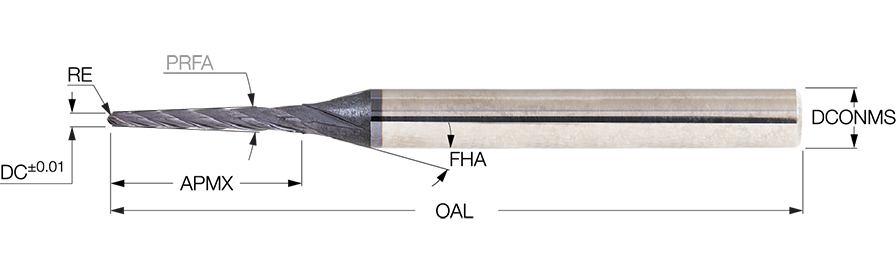

| Cutting Diameter (DC) | 1.5 mm | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 8 mm | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Tool Type | Solid ball nose |
| Overall Length (OAL) | 45 mm | Body Material | Carbide |
| Flute Helix Angle (FHA) | 25 Degrees | Connection Code Machine Side (CCMS) | Cylindrical |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Maximum Feed per Tooth (fz(max)) | 0.012 mm/tooth |
| Body Half Taper Angle (BHTA) | 1.0 Degrees | Minimum Feed per Tooth (fz(min)) | 0.005 mm/tooth |
| Coating | AlTiN | Unit | M |
Product Features
| Family Description | 4 flute, 25° helix solid carbide tapered ball nose. Used for rib processing on hardened steel | FamilyName | EBT-T4 |
| COO | Korea | BrandName | Iscar |
Shipping Info
Weight per item
0.0090
Name
Tapered End Mills
FamilyName
EBT-T4
BrandName
Iscar
