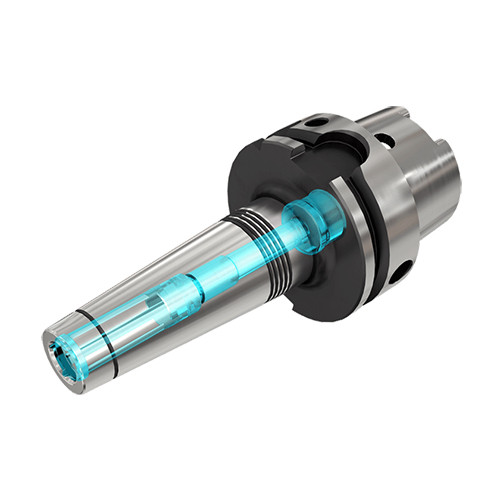

HSK A63 SRK 3X85 CX
Thermal Shrink Chucks with HSK DIN69893 Form A tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide tools with h6 tolerance.

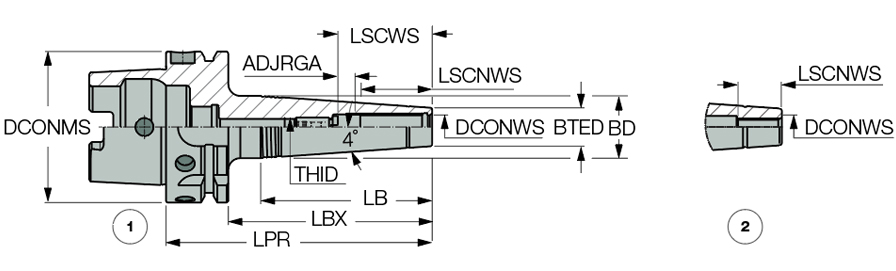

| Connection Diameter Machine Side (DCONMS) | 63 mm | Body Length Maximum (LBX) | 85 mm |
| Connection Diameter Workpiece Side (DCONWS) | 3 mm | Measurement Type | Metric |
| Body Length (LB) | 78.7 mm | Tool Type | HSK |
| Body Diameter (BD) | 21 mm | Body Material | Steel |
| Body Taper End Diameter (BTED) | 10 mm | Connection Code Machine Side (CCMS) | HSK |
| Protruding Length (LPR) | 111 mm | Unit | M |
Product Features
| Family Description | Thermal Shrink Chucks with HSK DIN69893 Form A tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide tools with h6 tolerance. | FamilyName | HSK A-SRK-CX |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). For solid carbide tools Preset screw CX allows supply of coolant via JET channels - not to be removed! For shank dimensions click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.8430
Name
Shrink Fit Holders
FamilyName
HSK A-SRK-CX
BrandName
Iscar
