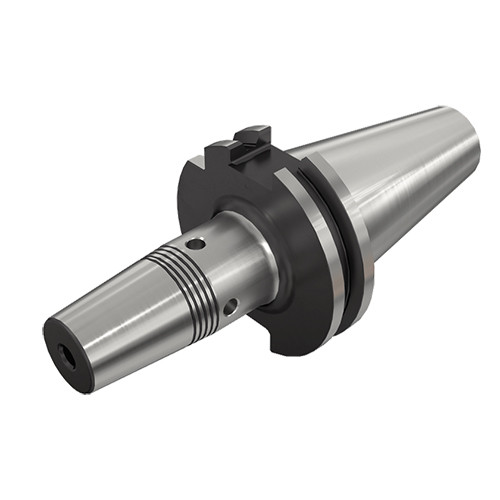

DIN69871 40 SRKIN 18X80
Thermal shrink chucks with integral DIN 69871 form AD taper shank for solid carbide HSS and steel tools with h6 tolerance.

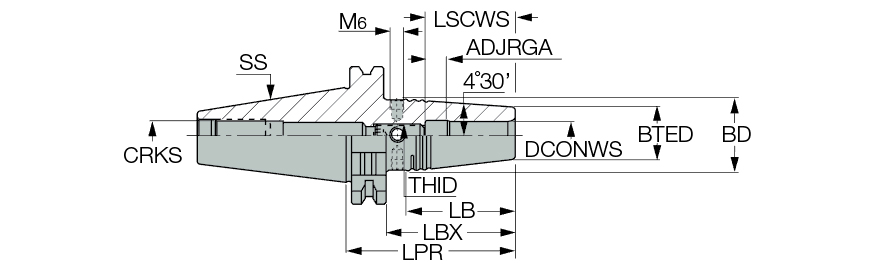

| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 18 mm | Tool Type | DIN 69871 |
| Shank Size (SS) | 40 | Body Material | Steel |
| Body Length (LB) | 57 mm | Connection Code Machine Side (CCMS) | DIN69871 |
| Protruding Length (LPR) | 80 mm | Unit | M |
| Overall Length (OAL) | 148.4 mm |
Product Features
| Family Description | Thermal shrink chucks with integral DIN 69871 form AD taper shank for solid carbide HSS and steel tools with h6 tolerance. | FamilyName | DIN69871-SRKIN |
| Remarks | Use only inductive heating device for SRKIN holders ISCAR cannot guarantee an unbalance value less than 1 gr x mm For shrink units information, Click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.2700
Name
Shrink Fit Holders
FamilyName
DIN69871-SRKIN
BrandName
Iscar
