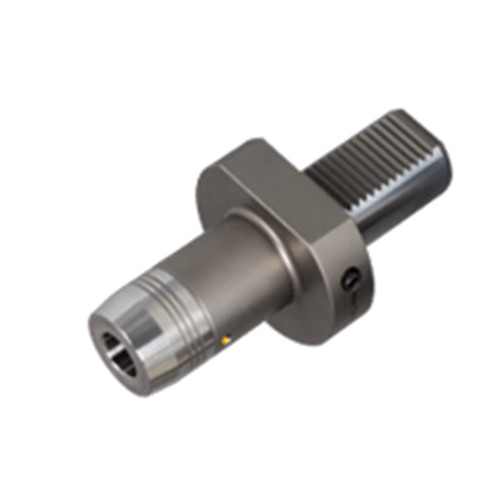

DIN69880 40 HYDRO 25X95
Hydraulic chucks with DIN69880 VDI shanks. for Semi-Finish and finish applications

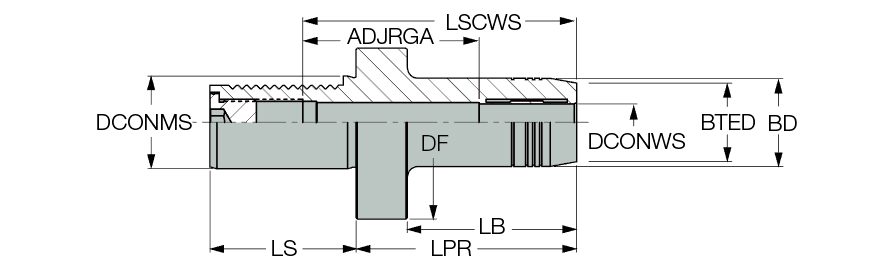

| Body Length (LB) | 73 mm | Tool Type | VDI-DIN69880 |
| Connection Diameter Workpiece Side (DCONWS) | 25 mm | Measurement Type | Metric |
| Body Diameter (BD) | 50 mm | Body Material | Steel |
| Protruding Length (LPR) | 95 mm | Unit | M |
| Shank Size (SS) | VDI40 |
Product Features
| Family Description | Hydraulic chucks with DIN69880 VDI shanks. for Semi-Finish and finish applications | FamilyName | DIN69880-HYDRO |
| Remarks | Chucking forces will be reduced by 25% if reduction sleeves are used Note: Reduction sleeves are available for 12, 20, 25 and 32 mm bore diameters (ordered separately) | BrandName | Iscar |
| COO | Germany |
Shipping Info
Weight per item
2.1490
Name
Hydraulic Holders
FamilyName
DIN69880-HYDRO
BrandName
Iscar
